Aesthedes

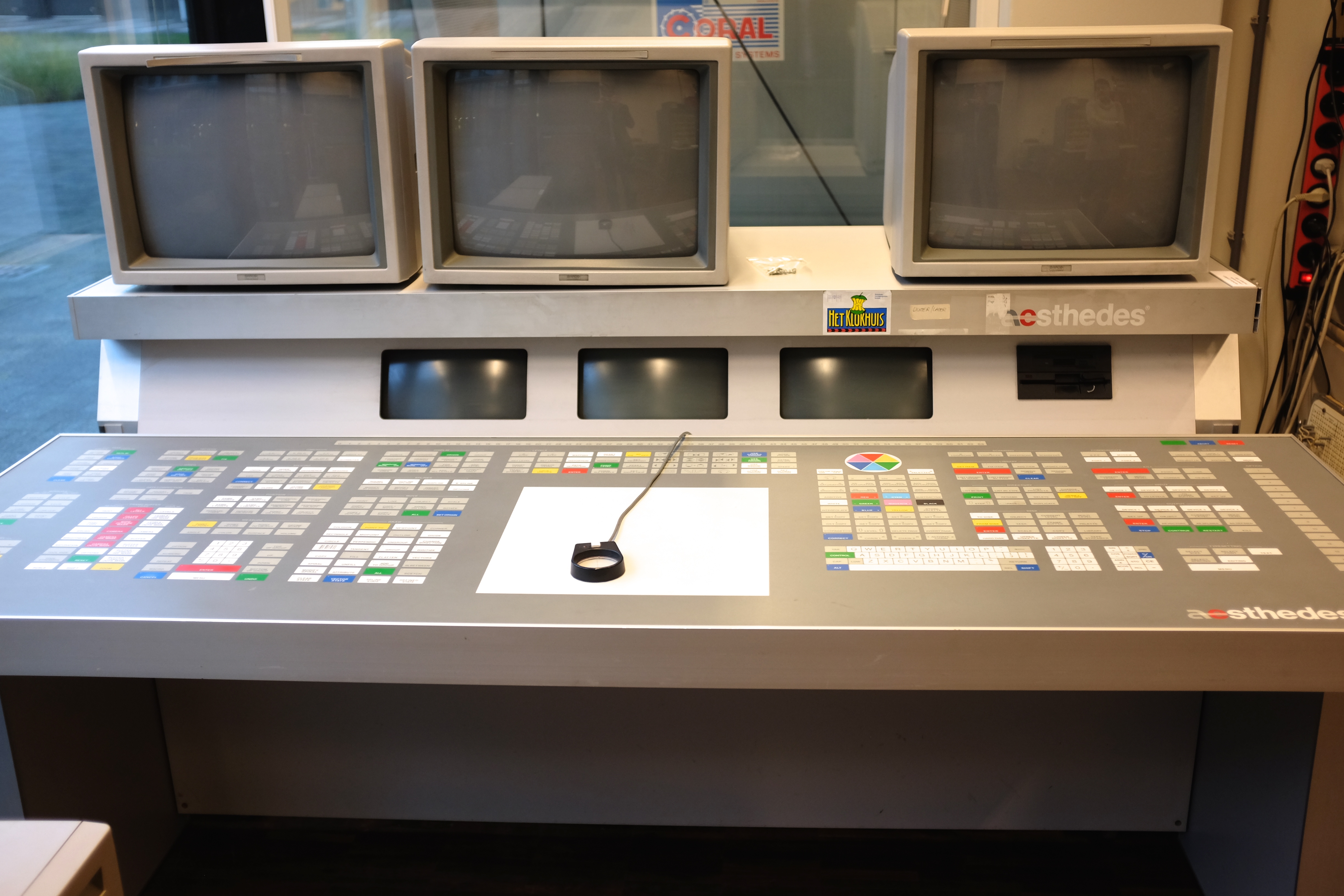

Dominique Claessens' foundational belief was that a designer should 'be able to start immediately, without knowledge of computers.' The insight was that switching between 'creative brain' (visual thinking, spatial reasoning) and 'cognitive brain' (remembering keyboard shortcuts, navigating menus) broke the design flow. His solution was extreme: a dedicated physical key for every single function. No Ctrl, Alt, or Cmd keys — those were 'modifiers,' his were 'keepers.' The Aesthedes 1 membrane desk had roughly 583 keys; the Aesthedes 2 added a hidden pull-out QWERTY tray for text entry, bringing the total to approximately 636 keys — likely the most keys ever on a production computer. The keys were organized into coloured islands: 64 layer-select keys, a colour-wheel island, boolean operation keys, move/mirror/rotate blocks, and named-function sections. Each island had its own red ENTER key. The training manual included printed mini-maps showing where each key was located on the desk, because finding the right key among 636 was itself a non-trivial task. The keyboard was the GUI — what you saw printed on the membrane was what you got, with no abstraction between physical input and software function.

Rather than stacking information in overlapping windows (a concept that barely existed yet), the Aesthedes gave every information view its own physical monitor. The three 20-inch Barco RGB colour monitors showed: (left) a zoom view of the current layer at up to 100× magnification; (center) the composite view with all 64 layers stacked; (right) the working layer in monochrome cyan. Three 12-inch monochrome data screens below displayed project parameters, RGB values per layer, and the last 10 commands executed. All six screens updated simultaneously — no window to bring to front, no tab to click. The canvas itself was enormous: 64,000 × 64,000 coordinate units with 64 layers. Units could be defined so that a map of the Netherlands appeared at actual life scale, with distance measurements in kilometers. Each layer held one colour; higher-numbered layers visually covered lower ones. The system was purely vector-based, with B-spline curves for smooth shapes, and output through plotters or a raster image processor (the APD, a separate Aesthedes-styled peripheral) for colour-separated film.

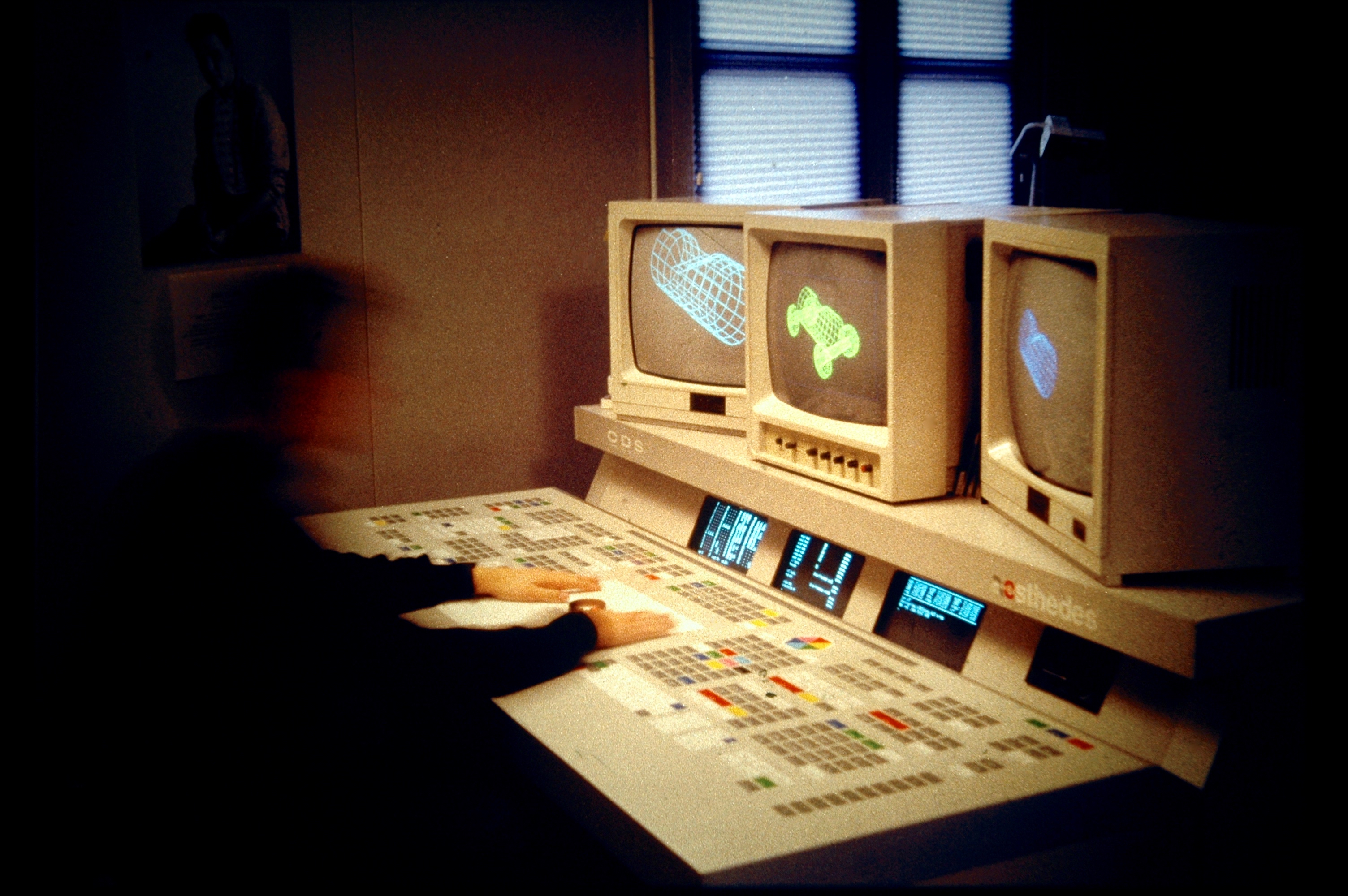

Despite Claessens' vision of an immediately accessible machine, the Aesthedes was so complex that most agencies hired dedicated operators — trained specialists who sat between the designer and the machine. At Total Design, the workflow reversed entirely: the designer had to complete the entire conceptual process beforehand, clearly describing every detail to the operator, who then executed it. As designer Robert van Rixtel recalled, 'You had to have completed the conceptual process before you started. That's totally the opposite nowadays because you can usually sketch directly on the computer.' Frustrated by the communication gap, van Rixtel once grabbed a transparency sheet, taped it to the computer screen, and penciled his design directly on it. 'It worked.' The Aesthedes also had a notorious UNDO key — physically present on the keyboard, but the function was never implemented. Pressing it did nothing. Designers learned to save to floppy disk before every risky operation.

The Aesthedes played a key role in designing the Dutch 25-guilder 'Robin' ('Roodborstje') banknote, introduced in 1989 and designed by Jaap Drupsteen. Drupsteen used three computer systems sequentially: the Quantel Paintbox for the first sketch, the Aesthedes to refine the intricate anti-counterfeiting linework (its enormous vector precision was ideal for guilloche patterns), and a Tekari drafting computer for fine details. The Dutch State Printing Office (Sdu), which leased its Aesthedes to the central bank for the project, used the machine specifically for designing 'moeilijk na te maken documenten' — hard-to-forge documents including giro cheques, state lottery tickets, and all Dutch traffic signs. Drupsteen went on to use the same workflow for subsequent notes: the 100-guilder 'Little Owl' (1992), 1,000-guilder 'Lapwing' (1996), and 10-guilder 'Kingfisher' (1997).

The Apple Macintosh (1984) cost roughly 25,000–40,000 guilders — an order of magnitude less than the Aesthedes's 300,000–400,000. While the Aesthedes required trained operators and proprietary software, the Mac ran off-the-shelf applications and let designers work directly. The Aesthedes 2 even offered optional Macintosh connectivity — the irony of selling the machine that would destroy you as a peripheral. As the UvA Computer Museum notes: 'Ultimately, the Macintosh would make its Aesthedes host obsolete, as it became apparent that most of the work could be done on the Mac.' A single repair board for the Aesthedes cost as much as a complete Macintosh. Total Design scrapped their three units in 1990. Claessens sold the company to Barco Graphics in November 1989. Some machines remained in service until the turn of the century. An Aesthedes 3 was developed but never shipped as hardware — it became a software-only solution running on Silicon Graphics machines.

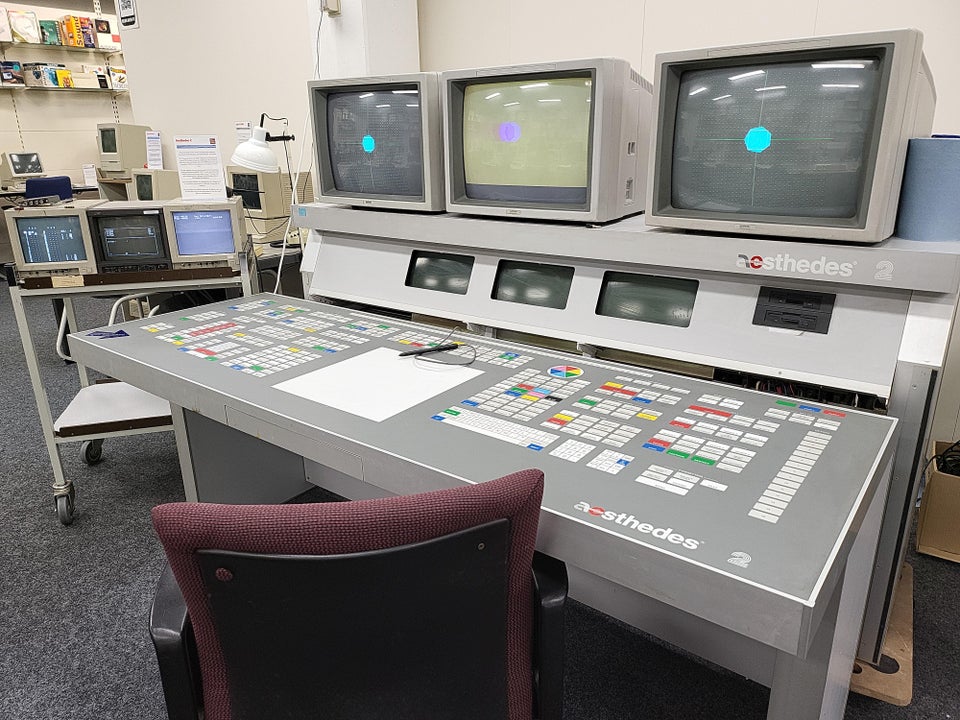

By 2018, there were 'no schematics, no pictures, no manuals, no videos' of the Aesthedes online. The HomeComputerMuseum in Helmond, Netherlands, reverse-engineered everything — even the Barco monitors lacked surviving documentation. They tracked down former employees and users through social media, who shared knowledge and surviving materials. In March 2024, the museum crowdfunded €3,160 to rescue an Aesthedes 1 from the University of Amsterdam, which had lost all operational knowledge of it. Transport alone cost €1,500. The software was password-protected with 'long forgotten passwords'; source code had been discarded after the company's shutdown. First power-on: 2021. 90% operational: 2022. Fully working: January 2025. Two working Aesthedes computers now sit side by side at the museum — the only two in the world known to be fully operational.
