Kay Visi-Pitch / Electroglottograph

The electroglottograph principle was invented by Philippe Fabre in France (1957), with independent refinements by Fourcin and Abberton at University College London (late 1960s). Kay Elemetrics entered the field as a commercializer, building its own EGG implementation for integration with the Visi-Pitch voice analyzer. Martin Rothenberg founded Glottal Enterprises in the early 1980s as a competing EGG manufacturer. Kay Elemetrics, already established in speech science through the Sona-Graph (1961), saw the clinical market opportunity: a real-time visual biofeedback tool for voice therapy patients.

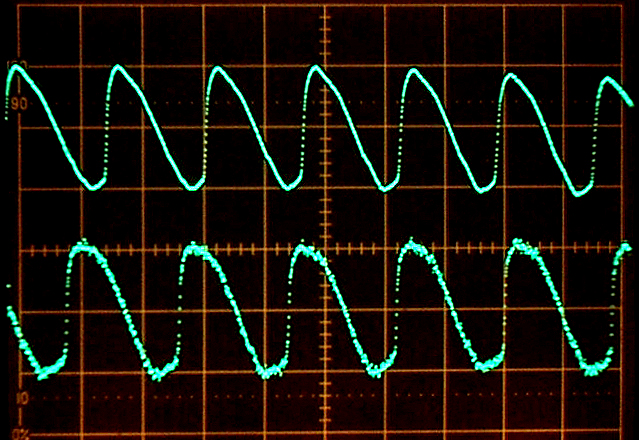

Two gold-plated surface electrodes (~2 cm diameter) in a Velcro neckband are placed on either side of the thyroid cartilage at the level of the vocal folds. Electrode jelly ensures conductivity. A constant ~2-3 MHz AC current at under 2 mA passes through the neck tissue. When vocal folds make contact, the transverse electrical impedance across the larynx changes proportionally to vocal fold contact area (VFCA). The amplitude-modulated voltage is demodulated into an Lx (laryngograph) waveform. Critically, this measurement requires NO audible sound — it works during silent phonation, whispered speech, or subvocalization. The signal represents the physical movement of the vocal folds themselves, not the acoustic pressure waves they produce. The Model 6300 digitized both the EGG waveform and a conventional microphone signal through a custom ISA ADC card, displaying them in real time on an IBM PC running MS-DOS. The software showed pitch contour (Hz vs. time), intensity envelope, EGG waveform overlay, and derived parameters like jitter and contact quotient.

The Visi-Pitch Model 6087 shipped in 1977 as a standalone instrument with a built-in green-phosphor CRT, rotary knobs, and BNC connectors — a self-contained voice analysis workstation in a beige metal chassis. The Model 6094 (c. 1988) added EGG input capability to the standalone unit. The Model 6300 (1987) was the first PC-connected version, using a proprietary ISA-bus ADC card and custom Kay Elemetrics MS-DOS software. Later models (6095/6097, 1991-92) expanded PC capabilities. Kay Elemetrics was acquired by Pentax Medical in 1993, becoming KayPENTAX. The Visi-Pitch and EGG product lines continued through the 1990s and 2000s, with modern digital descendants still used in voice clinics today. KayPENTAX was eventually absorbed into Pentax Medical (now under Hoya Corporation), and the KayPENTAX brand was retired. Original Kay Elemetrics Visi-Pitch units appear periodically on eBay at $150-450.

The electroglottograph represents a unique category of HCI: a biosignal interface that measures internal physiological movement (vocal fold contact) rather than user-produced output (speech sound). It predates all modern 'silent speech' and subvocal interface research by decades. As a clinical biofeedback tool, it was one of the first widely deployed real-time visual biofeedback systems — patients could see their voice on screen and adjust it. The 1987 PC-connected Model 6300 represents the pivotal moment when specialized analog lab instruments were retrofitted with computer interfaces via custom ISA cards, bridging the standalone-instrument era and the PC-based scientific workstation era. The technology continues today in modern voice clinics and research labs, providing a clean 'then and now' narrative.
