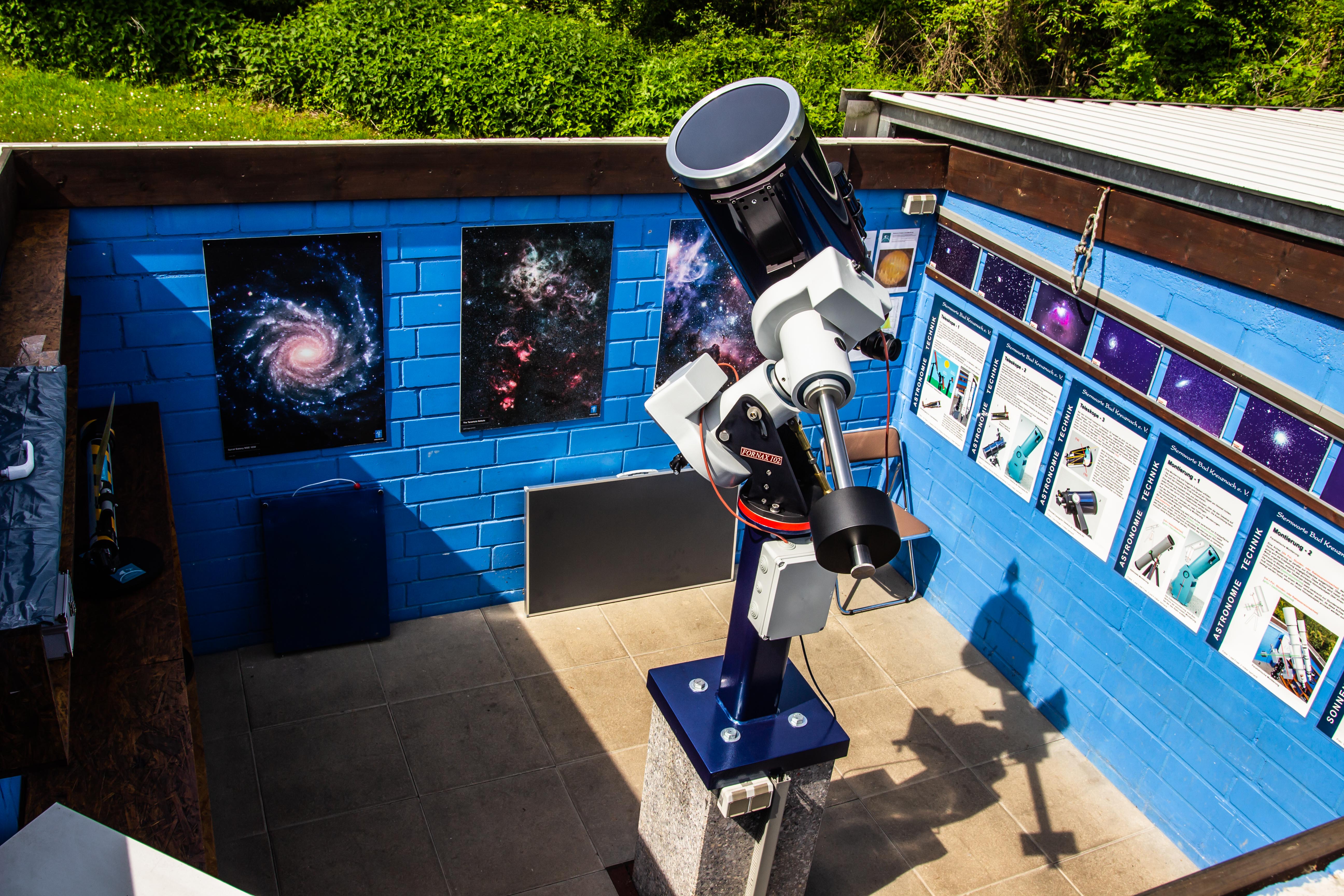

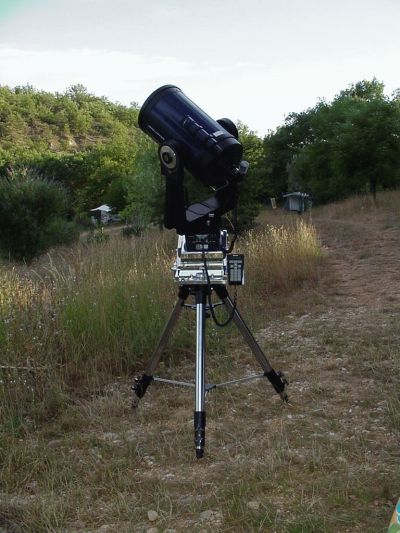

Meade LX200

In 1992, a consumer device with a two-line LCD contained 64,359 objects: 110 Messier, 7,840 NGC, 8 planets, 351 alignment stars, and 56,050 entries from the SAO, UGC, IC, and GCVS catalogs. The interaction is catalog-driven: type a number, and the telescope does the pointing. This is the same shift that database terminals brought to business computing, applied to the night sky — the amateur astronomer's task changes from finding an object to selecting one.

The LX200's keypad was engineered for a dark outdoor environment: red-LED backlighting preserves scotopic (night) vision, beeps confirm entries without looking, and the speed keys give graded manual control — slew to rough position, find, then center and guide by hand, a physical gradient from machine to human control. The MAP key doubles as a red flashlight for reading star charts. Few interfaces of the era were designed around a specific physiological constraint the way the LX200 was.

The LX200's RS-232 command set — simple text commands over serial — became the de-facto standard for amateur telescope control, implemented by later vendors and hobbyist projects for decades. The telescope was also one of the first consumer instruments to make "computerized pointing" the norm rather than the expensive exception: what had cost $4,000+ as a retrofit option was now the base product.

The museum's Tektronix 7854 (1980) is a lab instrument whose RPN keyboard works on waveforms; the LX200 is a consumer instrument whose keypad works on the sky. Where the 7854 turns the oscilloscope into a computer, the LX200 turns the computer into the telescope's pointing system. No other exhibit is a database-driven pointing instrument, and none designs its interface around night vision.
