Nintendo D-pad controller

The concept of a cross-shaped thumb pad was born in 1982 when Gunpei Yokoi, head of Nintendo’s R&D1 division, designed the Game & Watch version of Donkey Kong. The handheld’s small form factor precluded a joystick, so Yokoi created a flat, cross-shaped rocker that could be operated with the thumb alone. This “cross key” design was so successful that it was carried over to the controller for the Family Computer (Famicom), launched in Japan in 1983. The North American release of the NES in 1985 used the same controller (model NES-004E), with only minor cosmetic changes such as the addition of grey plastic and redesigned labels. The controller’s design was a collaborative effort within Nintendo’s hardware teams, with Masayuki Uemura overseeing the Famicom’s development and ensuring the D-pad controller met the demands of home console gameplay.

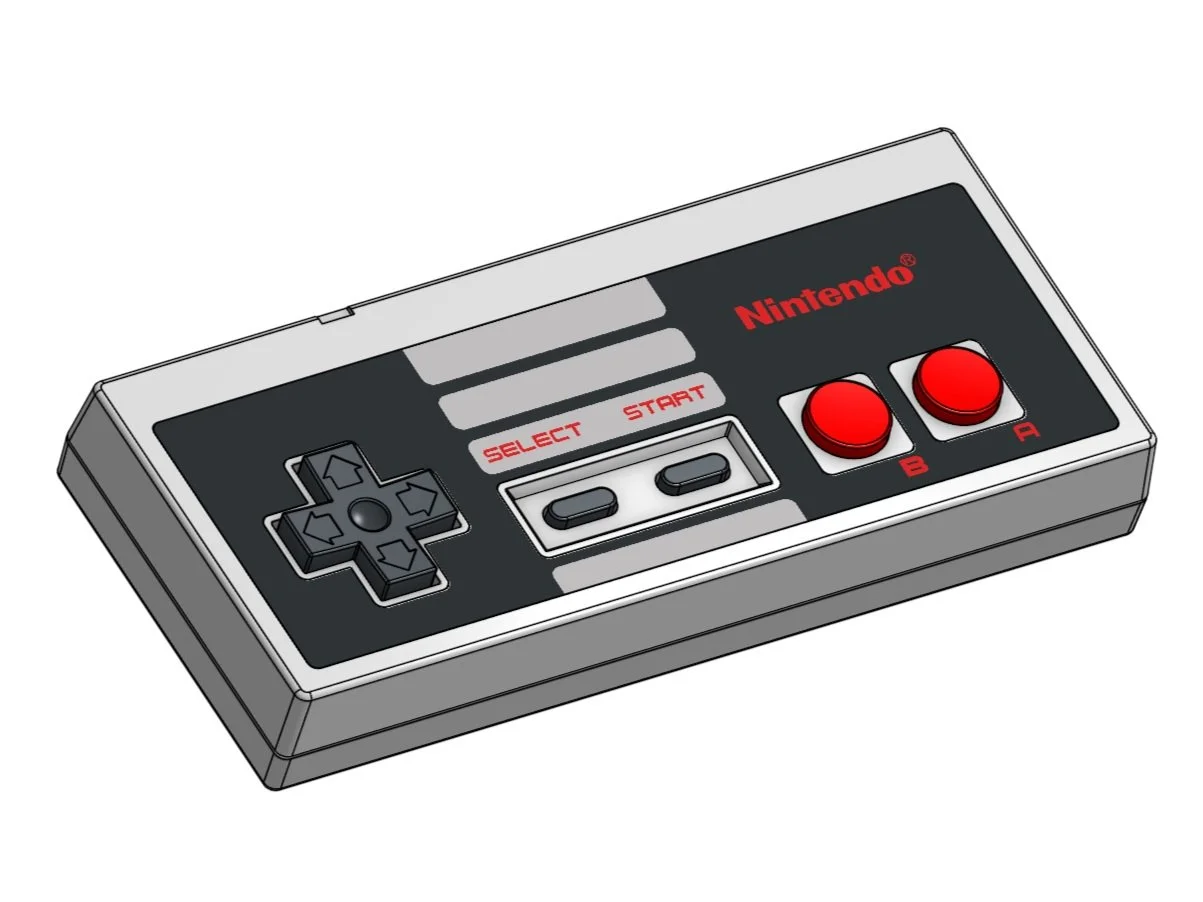

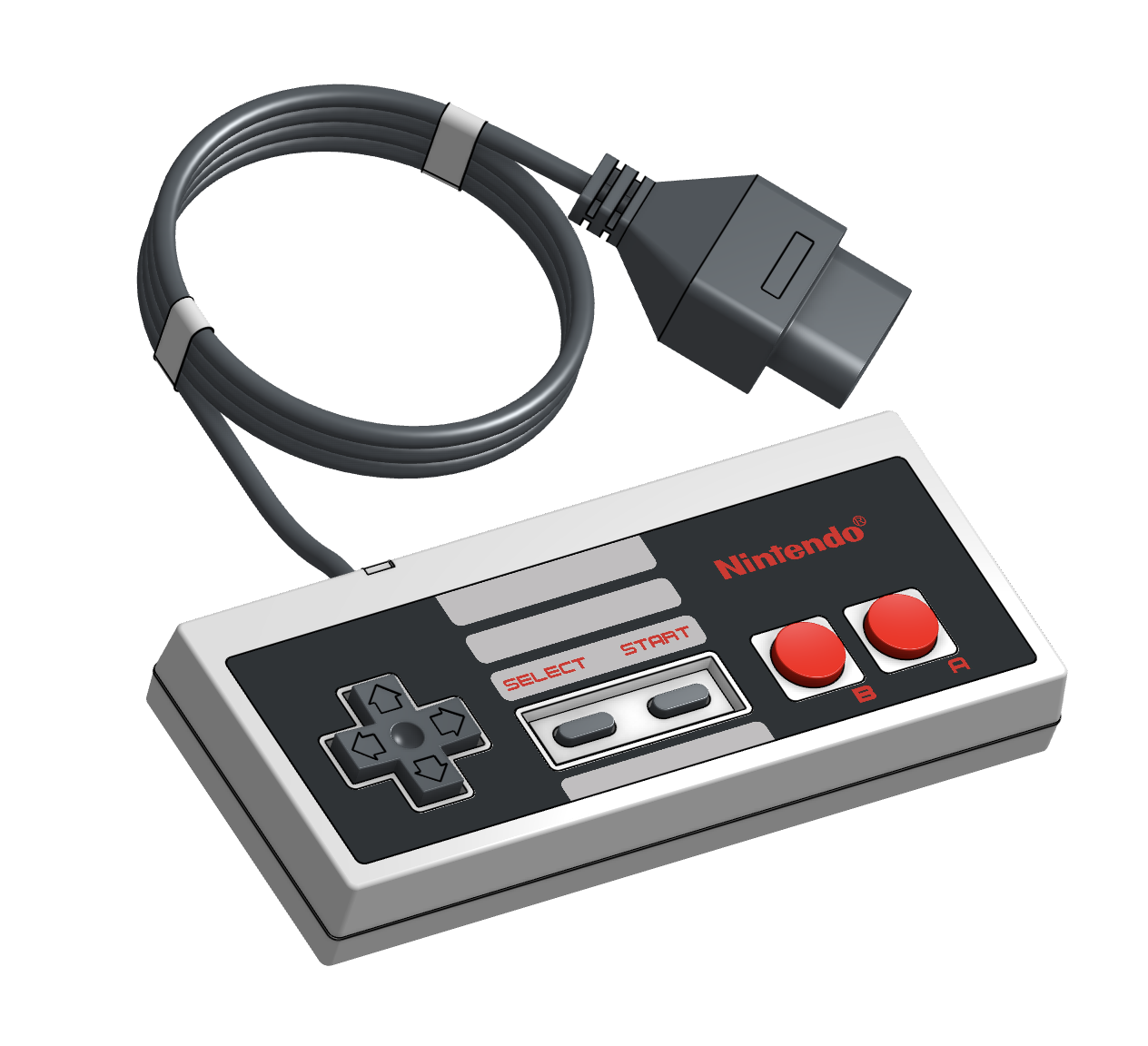

The NES-004E measures approximately 124 mm × 54 mm × 22 mm and is constructed from injection-molded ABS plastic. The D-pad unit itself is a cross-shaped piece mounted on a central pivot, resting on a metal plate inside the shell. Beneath each of its four arms, a rubber dome with a conductive carbon pad sits above a set of interleaved contacts on the printed circuit board. Pressing an arm collapses the dome, bridging the contacts and registering a directional input. The pivot prevents simultaneous activation of opposing directions, while pressing a corner engages two domes, producing a diagonal. The controller houses a single 4021B shift register IC, which reads the state of all eight buttons (four directions, A, B, Select, Start) and sends the data serially through a 7-pin connector. The original controller is tethered by a fixed 7.6-foot (2.3‑m) cable. The D-pad’s surface has a subtle linear texture for grip.

The D-pad transforms thumb motion into binary on/off signals, offering tactile feedback through the rubber domes’ snap and the pivot’s rocking feel. Players quickly learn to locate the pad by feel, using the cross shape as a home position for the thumb. The pad’s low profile reduces fatigue compared to joysticks, enabling rapid directional changes essential for fast-paced platform games. In Super Mario Bros., for instance, the D-pad’s reliability allowed precise control over running, jumping, and ducking without accidental diagonals. The A and B buttons are placed slightly to the right, allowing the index or middle finger to stabilize the back of the controller while the thumb alternates between D-pad and face buttons. This ergonomic arrangement became the standard for subsequent gamepads and influenced the layout of countless handheld devices.

Bundled with every NES console (which sold over 61 million units worldwide), the controller achieved widespread adoption and spawned numerous third-party clones and variations. Its design language persisted in Nintendo’s SNES controller (with additional shoulder buttons), the Game Boy (which integrated a D-pad as a primary input), and later consoles. Rival companies, from Sega to Sony, adopted the D-pad in their own gamepads, often paying license fees to Nintendo in the early years. Even as analog sticks took over primary movement in 3D titles from the mid-1990s, the D-pad never disappeared; it remains a standard feature on Xbox, PlayStation, and Nintendo Switch controllers, used for menu navigation, 2D games, and secondary commands.

The NES D-pad established a new interaction paradigm for consumer electronics, proving that a thumb-operated, discrete-input pad could replace bulkier joysticks. Its compactness enabled the development of genuinely portable game systems, from the Game Boy to modern mobile phones. The cross-shaped directional controller became an icon of digital control, informing the design of TV remotes, PDAs, MP3 players, and automotive interfaces. In human-computer interaction research, the D-pad is often cited as a case study in minimalist, intuitive input design that balances simplicity, durability, and precision. Over three decades later, the NES controller’s D-pad continues to be referenced as the benchmark for directional pad design, and its influence can be traced in all modern button-based directional controls.
