Optacon II (Tactile Reading Machine)

John G. Linvill, then a Stanford EE professor, conceived the Optacon in 1962 during a sabbatical in Switzerland after seeing an IBM pin-printer in Germany. His daughter Candy had been blind since age three, and he wanted a device that would let her read ordinary printed material without waiting for Braille transcription. Linvill filed the foundational patent (US 3,229,387, granted Jan 1966) and co-authored the foundational IEEE paper with Jim Bliss in 1966. Bliss, an SRI researcher with a doctorate in tactile displays, joined the Stanford faculty half-time to lead the tactile psychophysics, bimorph-driven pin array, and optics. Together they co-founded Telesensory Systems Inc. (TSI) around 1970 to commercialize the device; Linvill served as Chairman of the Board.

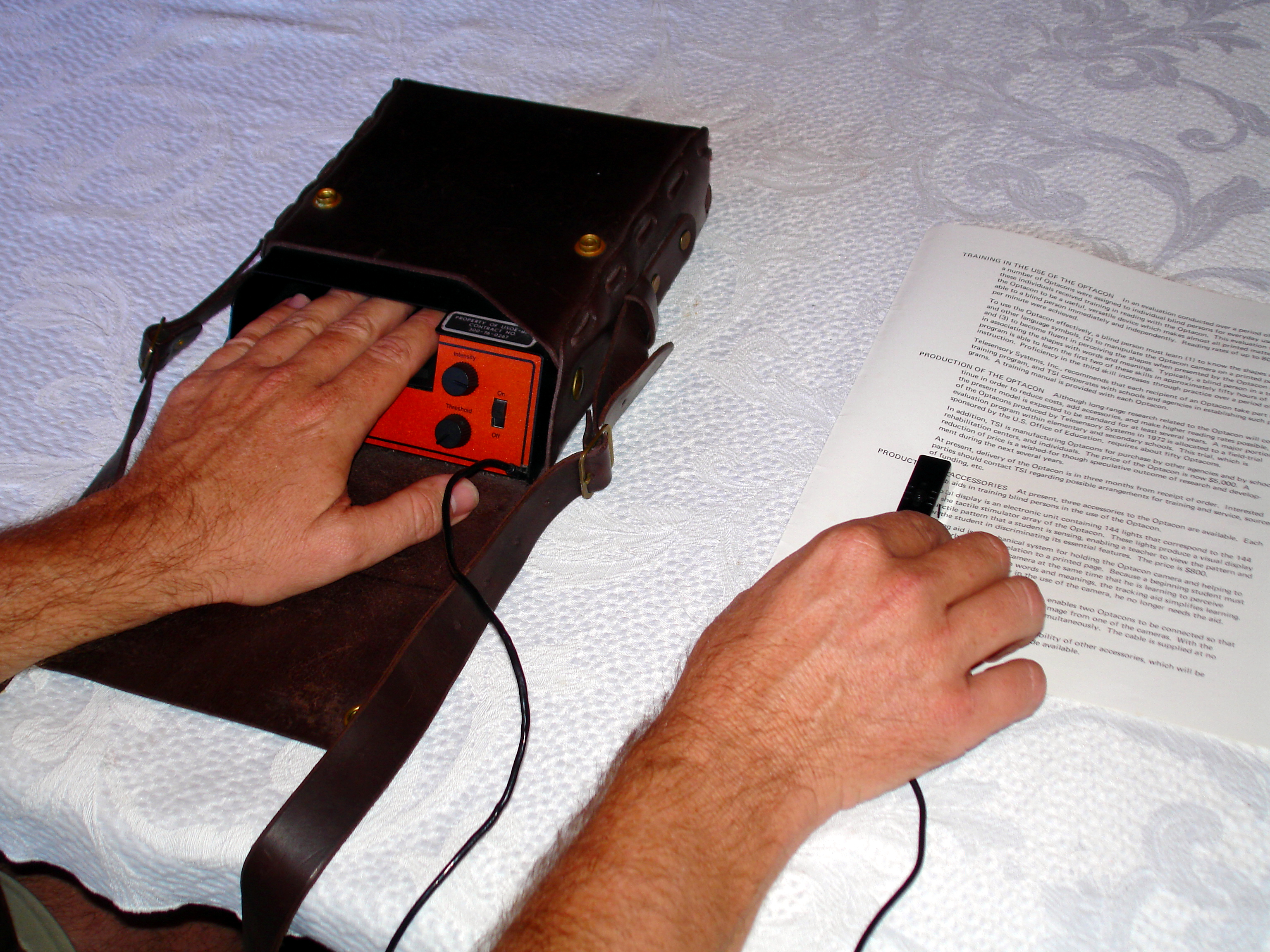

The Optacon is a two-part device. A small handheld camera module (~the size of a penknife) contains a custom monolithic 24×6 silicon-retina array of phototransistors, an LED illuminator, and a simple lens; the user manually slides the camera left-to-right across a line of print. A thin cable runs to the main electronics unit, which contains a 24-row × 6-column matrix of tiny metal rods (144 total), each driven by a piezoelectric bimorph reed vibrating at ~250–300 Hz. Rows are spaced 1 mm apart, columns 2 mm apart — fitting within an index fingertip. Black pixels in the camera image trigger vibration of the corresponding pins; white pixels do not. As the camera moves, tactile letter-shapes flow across the finger, mirroring the printed text in real time. Controls are minimal: an intensity knob (vibration strength), a threshold knob (black/white cutoff), and a polarity switch (dark-on-light vs. light-on-dark text). The Optacon II reduced the array to 100 pins to lower cost but added a computer-interface capability and special lens modules for typewriters, calculators, and CRT screens. Pure sensory substitution: no OCR, no storage, no speech synthesis — the user does the recognition.

The original Optacon shipped in 1971 at a price of around $3,500 (later dropping as low as $1,500 with insurance subsidies), with battery operation. The 1972 "one-hand" redesign (suggested by Harry Garland, built by Roger Melen and Max Maginness at Stanford) consolidated the camera and tactile array into a single hand-held unit. Throughout the late 1970s and early 1980s, TSI added lens modules for typewriters, calculator screens, and computer terminals — extending the reading surface beyond paper. The Optacon II (1985), co-developed with Canon Inc., was a substantial redesign with improved packaging and a dedicated computer interface; its tactile array was reduced from 144 to 100 pins in a cost-driven decision that hurt usability and limited its market. Roughly 15,000 total units were sold across the 1971–1996 production life. TSI discontinued the Optacon line in 1996 and shut down entirely in March 2005. The Computer History Museum (Mountain View) holds the S-15 prototype (1971, IR-100 Award winner); the Museo Tiflológico (Madrid) also holds an Optacon in its collection.

The Optacon is foundational in two HCI lineages. First, sensory-substitution interfaces: it is one of the earliest and most commercially successful devices to map one human sense onto another in real time, predating modern visual-to-auditory and visual-to-tactile substitution research by decades. The user's finger becomes a live image sensor — the pin array is a tactile retina. Second, assistive technology as a Silicon Valley industry: TSI was an early Bay Area startup explicitly founded to commercialize a disability-focused hardware device, supported by federal Office of Education and ONR funding. The Optacon II (1985) marks the moment the device gained a computer interface, moving it from paper-only to screen-reading and bridging the standalone-instrument era and the PC era. It is also a sobering case study in cost-driven design: the Optacon II's reduction from 144 to 100 pins degraded the user experience so badly that long-time Optacon users largely stuck with the older model.
