P300 Speller

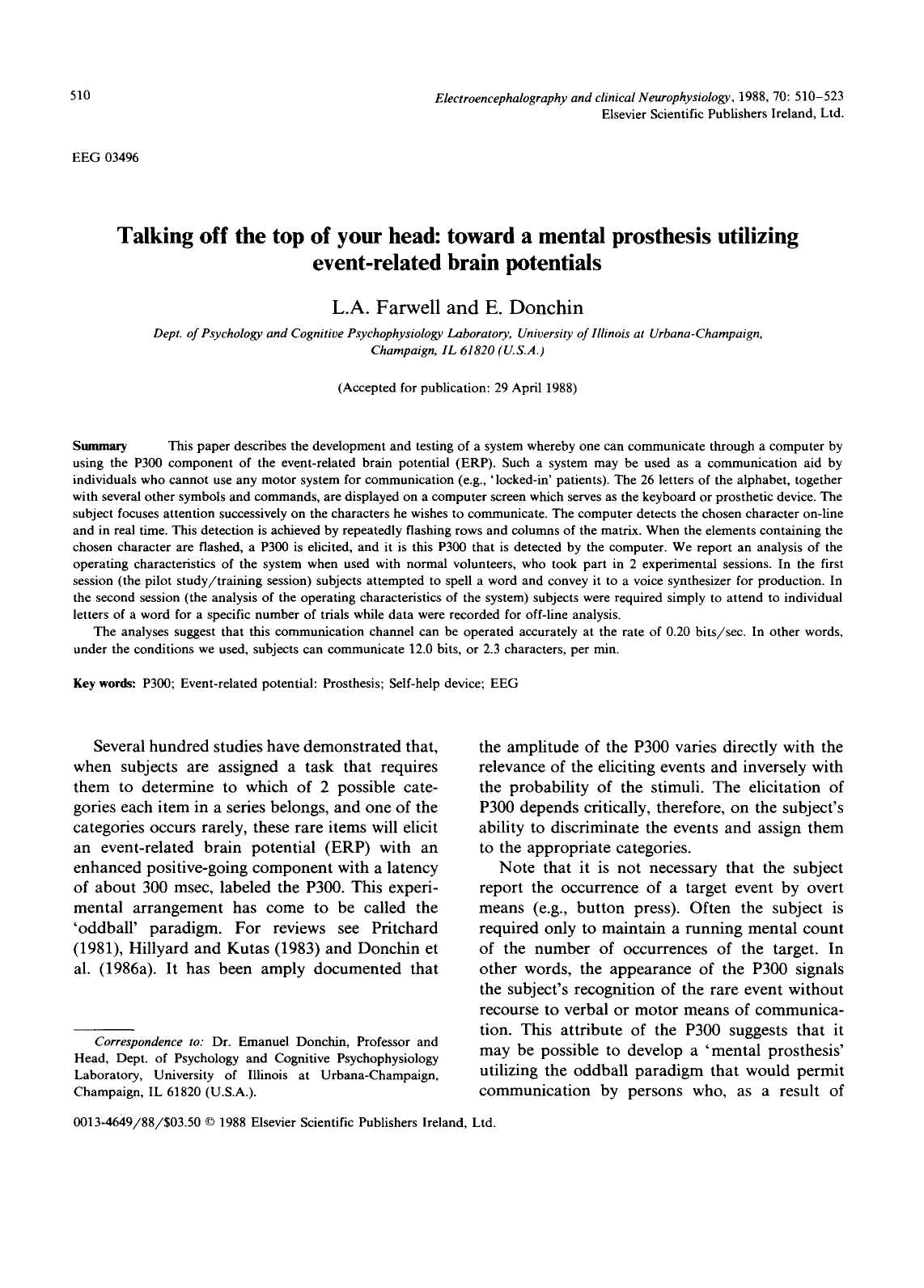

Farwell and Donchin described the system in “Talking off the top of your head: toward a mental prosthesis utilizing event-related brain potentials,” Electroencephalography and Clinical Neurophysiology 70(6):510–523, 1988.

The P300 is a positive EEG deflection that peaks roughly 300 ms after an infrequent, attended “oddball” stimulus. In the speller, this signal is elicited whenever the row or column containing the user’s target character flashes.

A 6×6 grid displays the alphabet plus digits. Rows and columns flash in random order; the user silently counts flashes that include the desired character. The row and column producing the largest P300 responses are identified, and their intersection gives the selected character.

The original report used a stepwise linear discriminant analysis (SWLDA) classifier, tested on four subjects, and achieved about 95% accuracy at roughly 12 bits/min information transfer rate.

Farwell and Donchin’s paper demonstrated that people could spell without any overt muscle movement. Later work introduced the checkerboard paradigm, region-based spellers, auditory/tactile variants, hybrid P300+SSVEP systems, and, most recently, LLM-augmented P300 spellers such as ChatBCI.

The P300 Speller established the dominant design for non-invasive visual BCI spellers and remains the reference architecture for communication BCIs used by people with ALS and locked-in syndrome.

The paper’s title coined the phrase “talking off the top of your head.” Modern descendants literally pair the speller with large language models to predict words and cut the number of required selections by up to 80%.
