Private Eye

Allen Becker dropped out of MIT and worked at Kurzweil Computer Products (Ray Kurzweil's reading machine company) before founding Reflection Technology in 1986. The core insight was that a mechanically scanned LED array could produce a viable raster display in an extremely compact package. Co-inventors Ben Wells and Nate Goldschlag contributed to the design. US Patent 4,934,773 ("Miniature video display system") was filed July 27, 1987 and granted June 19, 1990.

A vertical column of 280 red LEDs shines through a magnifying lens onto a mirror mounted on a voice-coil actuator. The mirror oscillates horizontally, sweeping the column of light across the user's field of view. By pulsing individual LEDs at precise moments during each sweep, the system draws successive columns of pixels onto the retina. Persistence of vision fuses these into a stable 720×280 bitmap image appearing as a virtual 15-inch display at 18 inches (22-degree field of view). The entire optical assembly fits in a light-tight box measuring 3.2 × 1.2 × 1.1 inches.

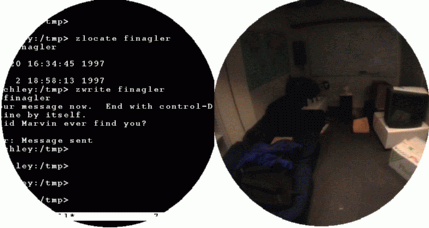

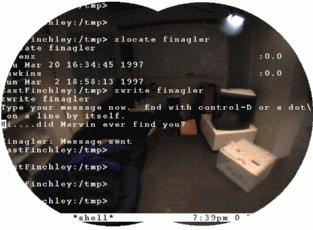

The Private Eye was designed to be monocular — covering only one eye. Users discovered that the brain automatically fuses the display image with the real-world view from the uncovered eye, creating the illusion of a transparent screen floating in space. This required no beam splitters, no optical combiners — just human neurophysiology. MIT researchers documented this effect extensively, and it became the basis for the "glance-at" interaction model: information was available with a quick glance upward while maintaining eye contact and situational awareness.

Before the Private Eye, head-mounted displays were heavy, power-hungry, and expensive (e.g., the VPL EyePhone at $250,000/system). The Private Eye's 2.5-ounce weight, 0.5-watt draw, and $795 price made all-day wearable computing practical. MIT's Thad Starner built his "Tin Lizzy" system around the Private Eye paired with a Twiddler chording keyboard — one hand for input, one eye for output. He wore this daily from 1993 through the late 1990s, typing 60 wpm while walking. CMU's VuMan 1 (1991) used the Private Eye for browsing blueprints hands-free. Columbia's KARMA system (1993) overlaid maintenance instructions onto real equipment via the Private Eye.

Nintendo purchased exclusive rights to the Private Eye display technology for an estimated $5 million, becoming the first-ever minority investor in a US company for Reflection Technology. The Virtual Boy (1995) used two Private Eye displays to create stereoscopic 3D. It was a commercial failure — only ~800,000 units sold, discontinued within a year — and Reflection Technology closed in September 1996 as a direct result.

Thad Starner, who wore a Private Eye daily for years, was hired by Google in 2010 as a technical lead on Project Glass. He has explicitly stated that Google Glass is a continuation of his Private Eye work. The Private Eye also established the "pocket computer + private head-worn display" paradigm that would later inform smartphones, smart glasses, and modern AR headsets like HoloLens and Apple Vision Pro. The device is held in the permanent collection of the Deutsches Museum in Munich.
