Quantel Paintbox

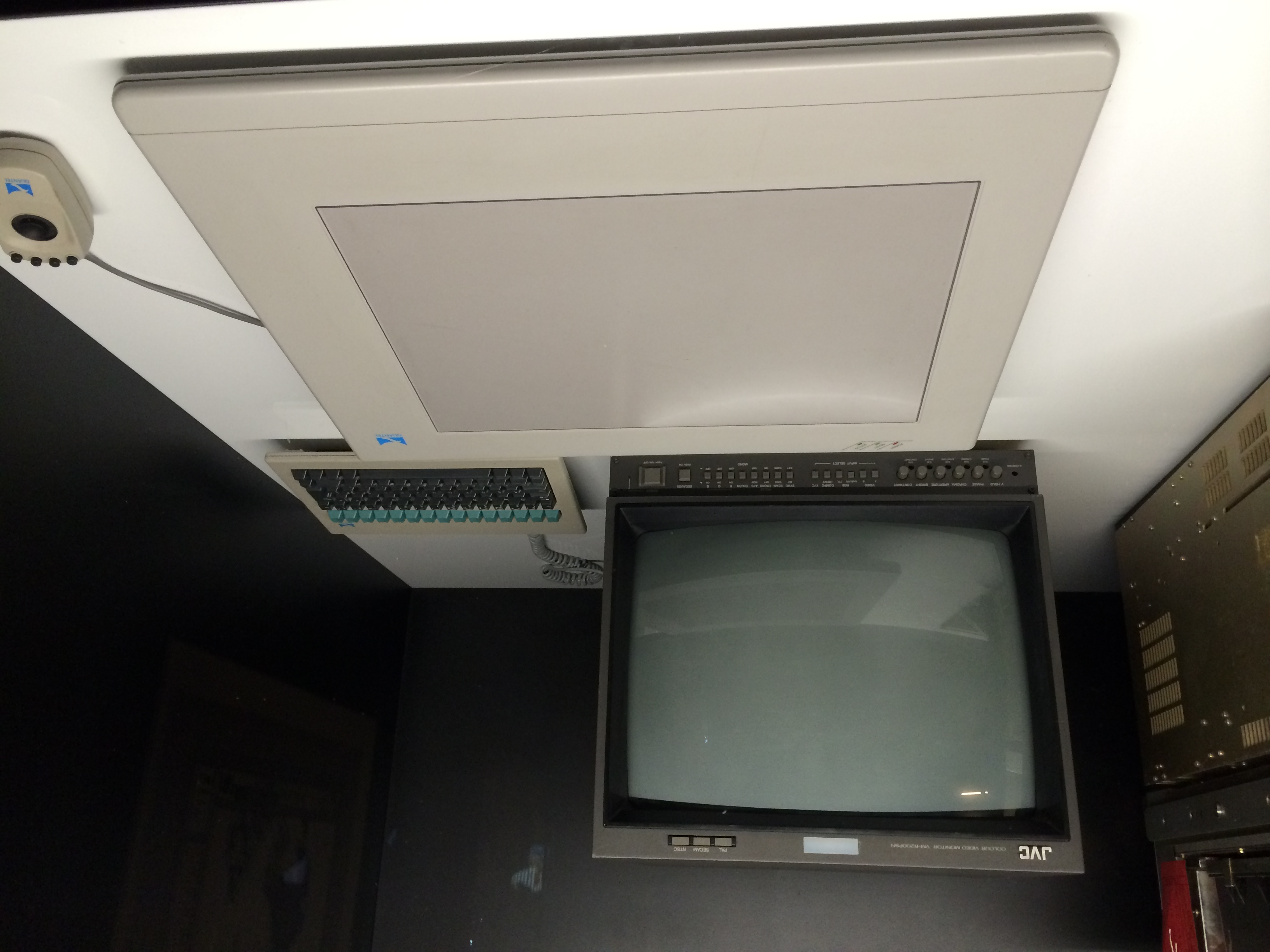

The Paintbox's most significant HCI innovation was the pressure-sensitive stylus and tablet — something that literally did not exist before the Paintbox. Quantel's engineers developed a touch-tablet and pen rather than using a mouse, driven by the insight that artists needed to control the opacity and flow of digital paint in the same natural way they controlled physical brushes. The stylus detected pressure and translated it into variable opacity, brush size, and paint flow. Colors actually mixed on the canvas — digital paint blended with existing colors just like oil or acrylic. The tablet surface was used only as a position input; artists quickly learned to look at the screen rather than the tablet, establishing the eye-screen/hand-tablet separation that is now standard for all graphics tablets. Pop-up menus were invoked by flicking the pen, replacing the older system of physical menus printed on the tablet surface. Quantel held international patents on this pressure-sensitive stylus technology, which were later cited in their 1990s lawsuit against Adobe over Photoshop's brush tools.

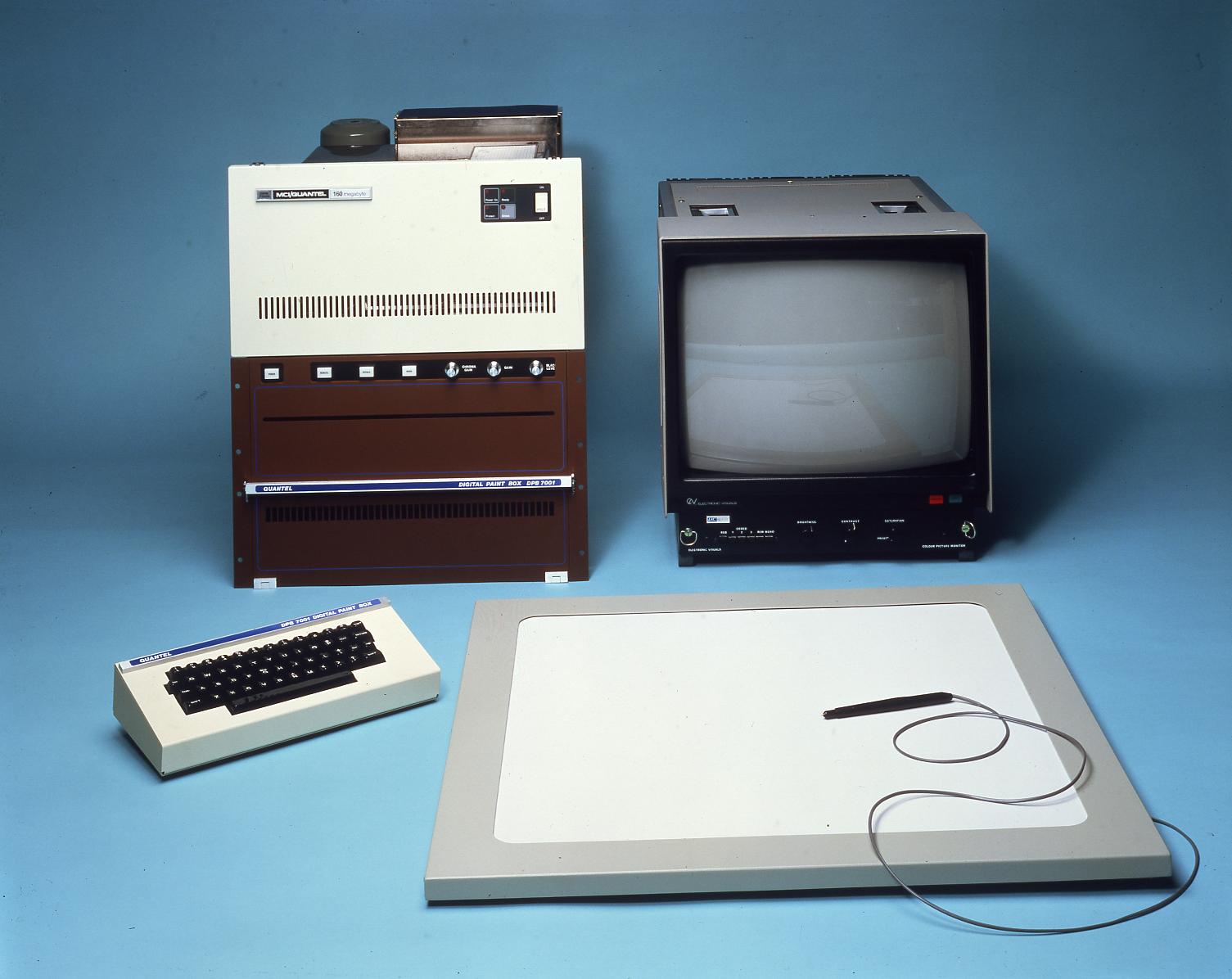

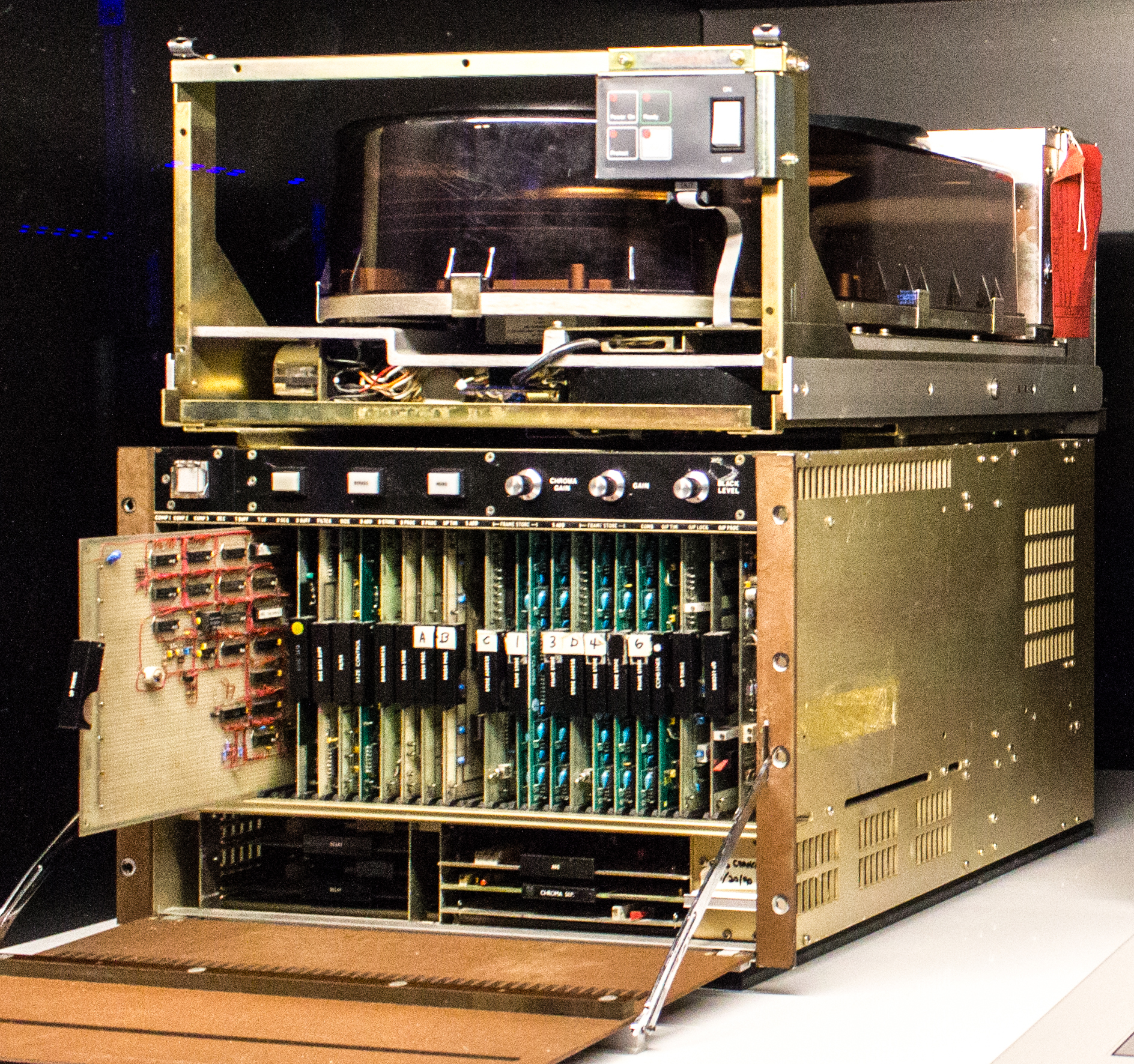

The Paintbox was a 24-bit (8 bits per RGB channel) true-color system producing broadcast-quality PAL (DPB-7001) or NTSC (DPB-7000) video output in real time. It used a Motorola 68000 CPU and was built around hundreds of SSI logic ICs held together by custom-programmed PALs (Programmable Array Logic ICs). The only way Quantel's engineers could make a painting system fast enough to keep up with an artist's natural hand movements was to move all creative functions — brushes, paint mixing, stenciling, cut-and-paste — into dedicated hardware. The Paintbox was effectively a giant accelerated graphics card. The hard drive was a Fujitsu M2294 'Eagle' — a 14-inch Winchester drive weighing over 100 pounds that stored only 335 MB (roughly 6 seconds of uncompressed SD video). Operators had to constantly copy work onto magnetic tapes to free drive space. The original 1981 machines had a dedicated framestore, stencils and layers (added 1982), and digital font/text functions (by Pepper Howard, 1983). The second-generation V-Series (1989) replaced SSI logic with Altera CPLD and FPGA ICs, added a cordless stylus, better tablet, upgraded keyboard, and cost $80,000–$100,000.

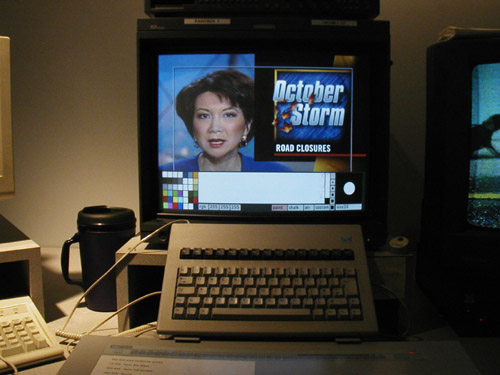

Before the Paintbox, TV graphics were produced by hand — artists drew on paper, which was then filmed and digitized. The Paintbox collapsed a two-day graphic production cycle into 15 minutes. Roger Goodman, ABC's director of production development, told The New York Times in 1984: 'It used to be that we had a staff of artists who drew and drew. But with the Paintbox an artist can come up with a graphic in 15 minutes that used to take two days.' By the mid-1980s, most graphics and visual effects on TV worldwide were created on a Paintbox. It defined the 1980s TV aesthetic: saturated colors, chrome gradients, flying logos — a look that became synonymous with the decade. Design critic Glenn Adamson noted the Paintbox's influence was simultaneous with MTV (which also launched in 1981), and that together they created the visual language of 1980s pop culture. BBC weather presenters stood in front of chroma-key screens and used clickers to advance Paintbox-created slides stored on Apple Lisa computers. NBC Nightly News, CBS Evening News, and ABC Sports all built their on-air graphics around the Paintbox. The system was used for the 1984 Los Angeles Olympics broadcast graphics, Doctor Who special effects, Top of the Pops titles, and countless TV commercials.

Early Paintbox users were not artists but broadcast technicians, due to union rules that only allowed engineers to operate the expensive equipment. This explains why early 1980s TV graphics often looked gaudy and same-y — they were made by people mesmerized by the technology, not by trained designers. As the technology matured, independent 'operators' emerged who were paid $500/hour — an extraordinary rate for the era. But training was scarce: unless you worked at a major network or post-production house, there was no way to learn. Creator Martin Holbrook himself left Quantel in 1986 to open his own post-production company in SoHo. Quantel gave three Paintboxes to UK art schools in the mid-1980s to broaden access to the tool. The machines ran 24/7 in post-production facilities, booked solid by advertising agencies and broadcast clients. This created a fascinating HCI dynamic: an interface so intuitive that non-computer-users could create professional work, but access was gate-kept by price, unions, and scarce training — a pattern that would repeat with later professional creative tools.

In 1985, Quantel developed the Graphic Paintbox, a higher-resolution print-quality variant that revolutionized the photo manipulation industry five years before Photoshop. It was used for the photo-composite album covers of Queen's 'The Miracle' (1989), Nirvana's 'Nevermind', and Beastie Boys' 'Paul's Boutique', plus movie posters for The Silence of the Lambs and JFK. When Adobe launched Photoshop in 1990, Quantel sued for patent infringement, claiming Photoshop used Paintbox's patented features — including the pressure-sensitive stylus digital painting system. Quantel won a 1990 case against Spaceward's Matisse (a cheaper Paintbox clone) in London's High Court. But against Adobe in 1997, Quantel lost. Alvy Ray Smith (co-founder of Pixar, creator of the first 24-bit RGB paint system Paint3 in 1977) testified that he had seen the Paintbox at NAB and immediately recognized it as a hardware implementation of Dick Shoup's SuperPaint concepts from 1973. A photograph was produced in court proving that digital airbrush features Quantel claimed to have invented predated the Paintbox at Smith's NYIT lab. The Delaware judge invalidated all five of Quantel's U.S. patents, clearing Adobe. The case is a landmark in HCI intellectual property history — and a demonstration that software/hardware patents on interaction techniques are fragile against prior art from the research community.

The Paintbox attracted major fine artists. David Hockney created his first digital art on a Paintbox in June 1985, calling them 'colored glass drawings' and describing the experience as 'painting with light on glass.' He said the colors had 'an almost neon glow' impossible in any other medium. Richard Hamilton, Howard Hodgkin, Larry Rivers, Sidney Nolan, and Jennifer Bartlett all created original works on the Paintbox for the BBC series 'Painting with Light' (1987). Quantel employed a hundred digital artists by the late 1980s to improve and demonstrate Paintbox features. The Computer Arts Society held a 50th anniversary Quantel Paintbox exhibition in 2023, curated by Adrian Wilson. The Dire Straits music video 'Money for Nothing' (1985) used Paintbox backgrounds and textures alongside a Bosch FGS-4000 3D system; it won MTV's first-ever Video of the Year award. Of the hundreds of Paintboxes sold, only two original DPB-7001 series machines survive — one in a museum, one privately restored. Approximately 22 total units of all versions are known, with about a dozen in working order — making surviving machines extraordinarily rare artifacts of professional creative HCI.
