Street Fighter Pneumatic Controller

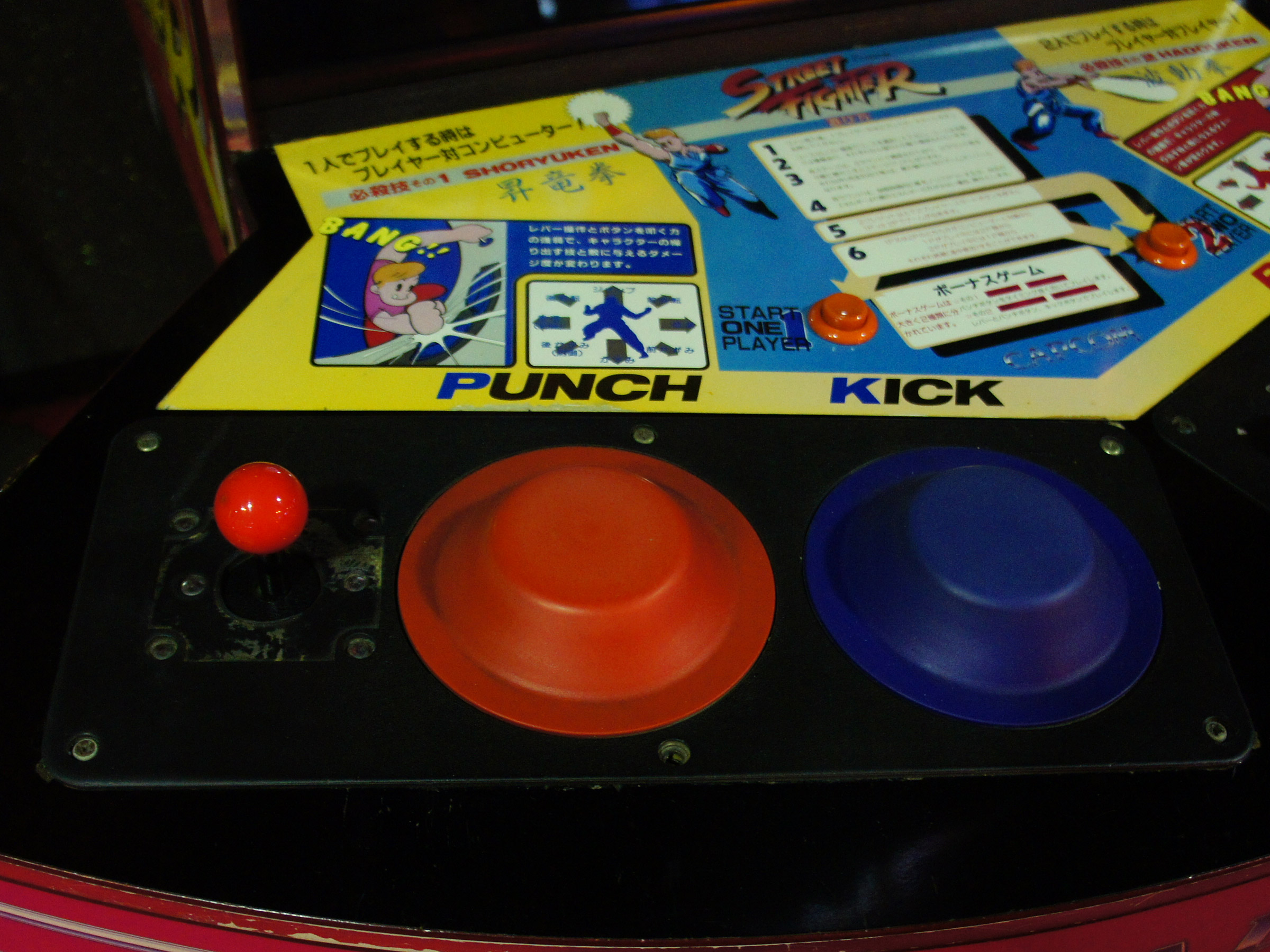

The interaction chain is remarkably elegant: (1) Player strikes the rubber bash pad mounted on a metal plate. (2) The strike drives a slider button — a cylindrical piston head connected via ball joint to a piston rod — downward into a cylinder. (3) The piston compresses air in the lower cylinder chamber. A compression coil spring provides resistance and return force. (4) A small-diameter bleed port, always open to atmosphere, allows slow air escape. A fast strike generates high pressure before air can bleed out; a slow push dissipates pressure through the port — making the sensor speed-dependent, preventing cheating by leaning on the pad. (5) A pressure take-out port routes the pressurized air through a flexible silicone tube into a metal Junction Box (a passive pass-through manifold — not a regulator, as long speculated), then to the Pneumatic PCB. (6) A diffused semiconductor pressure transducer on the PCB converts air pressure to voltage. (7) The game software compares the voltage against three preset thresholds to register light, medium, or heavy attacks. The pneumatic hardware required a specific ROM set — the 6-button ROMs simply cannot interpret pressure sensor input.

The pneumatic controller failed on multiple fronts. Physically: players injured themselves. 'Everybody was getting injured,' recalled Joe Morici, Capcom USA's SVP. 'I hurt my hand a few times. There were times when I had to use my elbow,' said player Tomotaka Suzuki. Director Takashi Nishiyama confirmed the development team knew: 'During development, we had a prototype of the sensor... Our planner, Hiroshi Matsumoto, had his hands swell up... Yoshiki Okamoto tested it and got scratches on his fists.' Commercially: the physical exertion meant players tired too quickly to keep feeding quarters — the opposite of what an arcade operator needs. 'It was basically like exercising. The whole point of monetizing this business was to get people to become repeat customers,' Nishiyama said. Mechanically: the cabinets broke down constantly. 'Capcom didn't know what it was doing — it didn't specialize in mechatronics,' Nishiyama admitted. Legally: Capcom USA feared lawsuits. 'I think we were worried about getting sued as well,' said Aldo Donnaloia, Capcom USA's Western regional sales manager. The correct technique — an open palm hovering directly above the pad with a controlled, soft touch — was explained by Japanese gaming magazine editors, but the arcade flyer showed a closed fist, actively encouraging the damaging behavior.

A critical technical detail discovered during Vincent Pureza's 2019–2023 restoration: the pneumatic version and the six-button version used entirely different ROM sets. Capcom didn't just swap the hardware — they reprogrammed the game software. When Pureza acquired pneumatic hardware but found it non-functional, he eventually diagnosed that the CPU ROMs at positions 19–24 had been replaced with six-button ROMs. Burning the correct pneumatic ROM set restored function. This means that even if the original pneumatic hardware survived, it also needed the matching software. Starting from zero documentation — no schematics, no known working units — Pureza had to reverse-engineer the entire pneumatic signal chain from patent drawings (US4850591A), surviving arcade manuals, and obscure forum posts. His 2023 Ars Technica article documented the complete restoration.

The cabinet was designed by Ken Hata at Atari Games in California — concept sketches are preserved at The Strong Museum of Play in Rochester, New York. Atari sourced the pneumatic pistons from SMC Pneumatics. The End PCB (filter board) was etched 'Atari Games Corp. (C) 1987, Rev B.' Capcom lacked mechatronics expertise: 'We ended up working with Atari, and we worked together to develop the sensor, since they're the ones who had the knowhow to make that happen,' Nishiyama said. The relationship was practical: Capcom was primarily a PCB company selling game boards to arcade operators; SF1 was their first attempt at a dedicated cabinet. Atari handled the physical engineering; Capcom handled the game design. The two companies' names sit side by side on the patent.
