SGI Dial and Button Box

The dial box represents a design philosophy that treats a computing workstation as an instrument, not an appliance. In this worldview, parameters deserve dedicated, physically present controls — each dial has a fixed meaning, and the user's body learns that meaning through proprioception and muscle memory. After weeks of use, an animator could reach for the 'zoom' dial without looking, the way a violinist finds a position on the fingerboard. This philosophy has deep roots: analog scientific instruments, the LINC computer's eight built-in knobs (1962), Evans & Sutherland's custom CAD control panels, and audio mixing consoles all embodied it. The dial box was one of its last mass-produced expressions before everything collapsed into the mouse-and-software-widget model. It asks a question that still hasn't been answered: why do audio engineers still mix on physical consoles, but 3D artists lost their knobs?

The dial box shipped years before HCI researchers formalized asymmetric bimanual interaction. When Bill Buxton's group at the University of Toronto began studying two-handed input in the late 1980s, they used SGI dial boxes as their primary experimental platform. The device perfectly embodied what Yves Guiard (1987) described in his Kinematic Chain Model: the non-dominant (left) hand sets and adjusts the spatial frame of reference (coarse, continuous, low-frequency actions on the dials), while the dominant (right) hand performs precise operations within that frame (fine, discrete, high-frequency actions with the mouse). Animators didn't need a theory to tell them this worked — they discovered it through daily practice, developing a fluency with 8-axis simultaneous adjustment that no mouse could replicate.

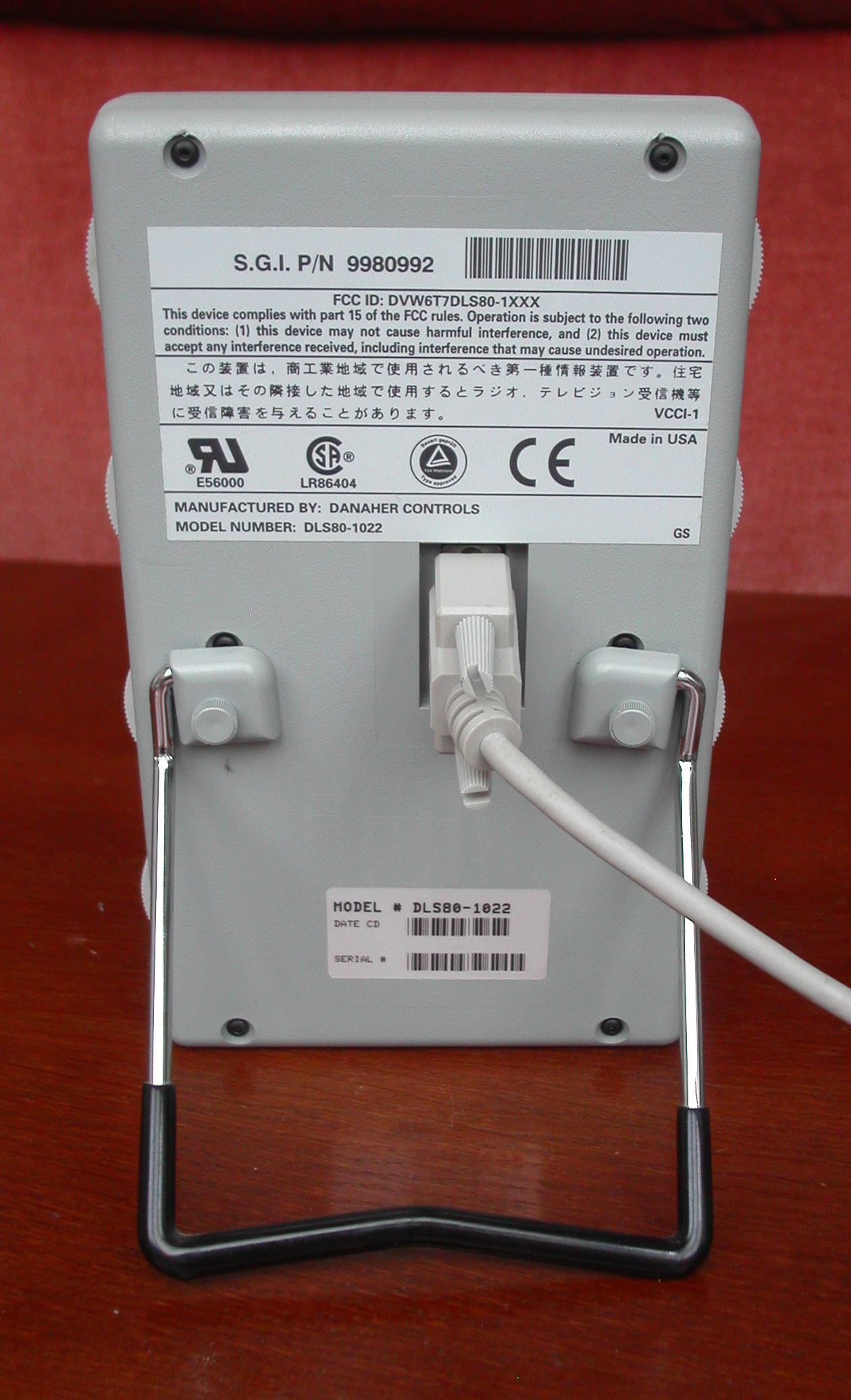

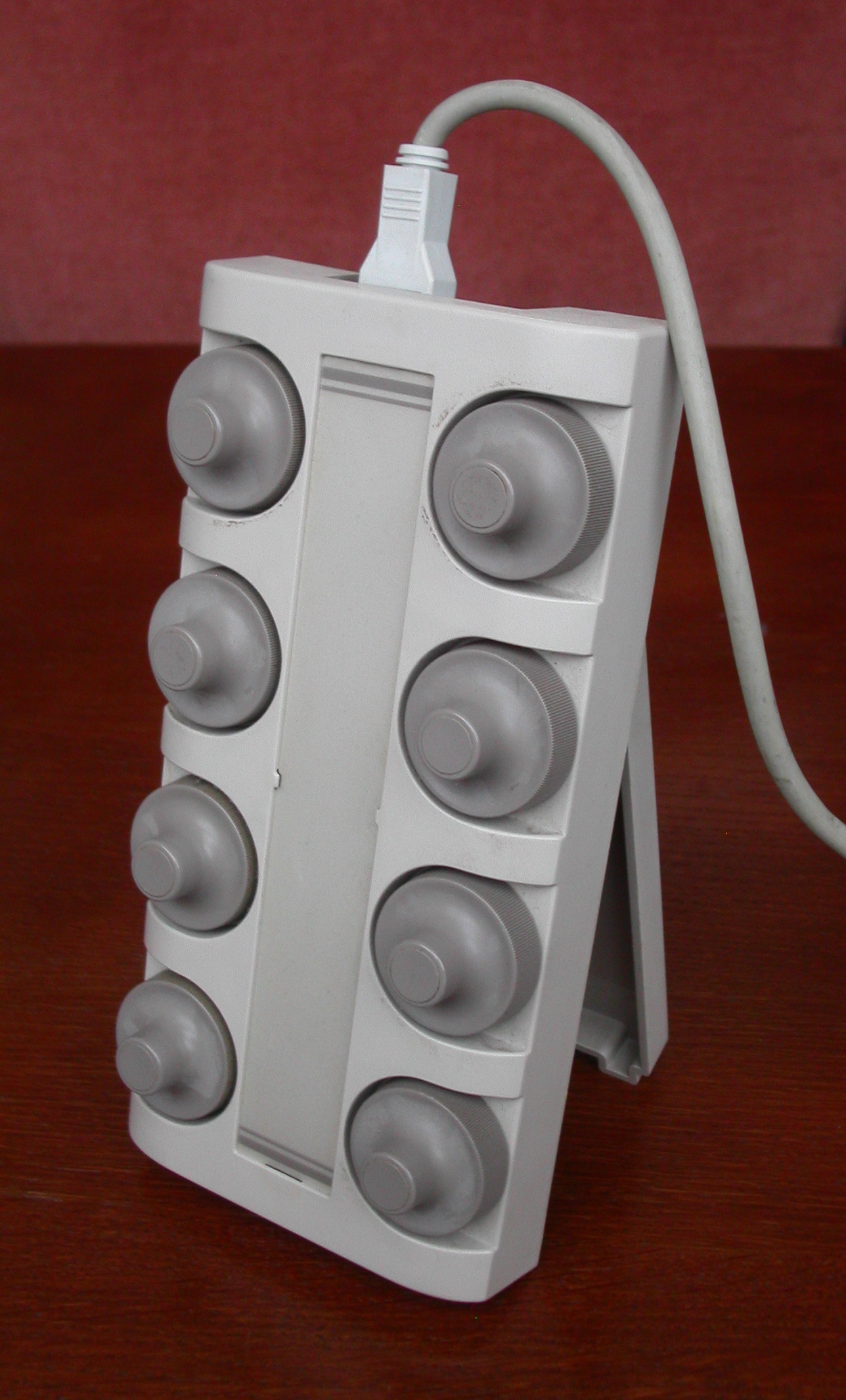

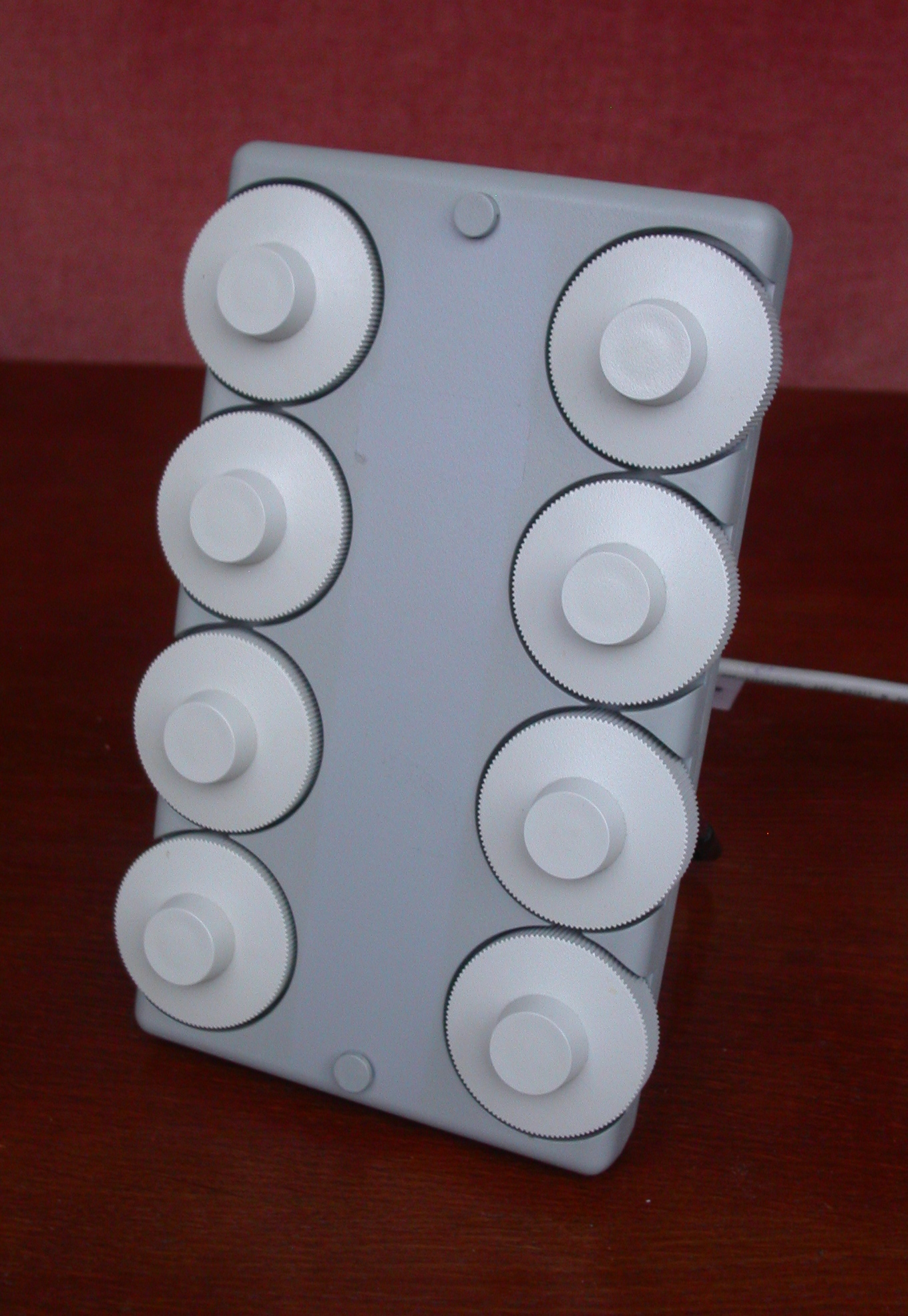

Modern UX design rarely treats muscle memory as an explicit design goal for parameter control. The dial box was built around it. Each dial was physically distinct by position — same size and feel, but the spatial layout was fixed and learnable. The 32 buttons had transparent keycaps for paper labels, allowing per-software customization. Professional animators working 8–12 hour sessions developed reflexive, unconscious access to parameters that, in a mouse-only workflow, would require repeated attention-shifting between the model and the toolbar. The dial box acknowledged something that software-only interfaces often forget: when your hands know where something is, your eyes can stay on the work.

The dial box died as a product, but its parameter layout became immortal. The standard mapping — three outer dials for X/Y/Z rotation, one for zoom/dolly, two for X/Y pan, and two for auxiliary functions — was adopted by virtually every 3D software package's navigation widget. Maya, Blender, Cinema 4D, Fusion 360: their orbit/zoom/pan tools all inherit the SGI dial box's axis assignments. Even the 3Dconnexion SpaceMouse (which replaced the dial box) offers the same degrees of freedom in a single puck. The physical knobs are gone, but their conceptual layout is burned into every 3D application you use today.

In recent years, the dedicated-physical-control philosophy has seen a renaissance through programmable control surfaces: Elgato Stream Deck, Loupedeck, Monogram Creative Console, and MIDI controllers mapped to Blender or Maya. These devices attempt to restore what the dial box offered — dedicated, task-specific physical controls that the user's body can learn. They are not identical (most use buttons and sliders rather than infinite-rotation encoders), but they are direct descendants of the same idea: that creative professionals deserve instruments, not just toolbars.
