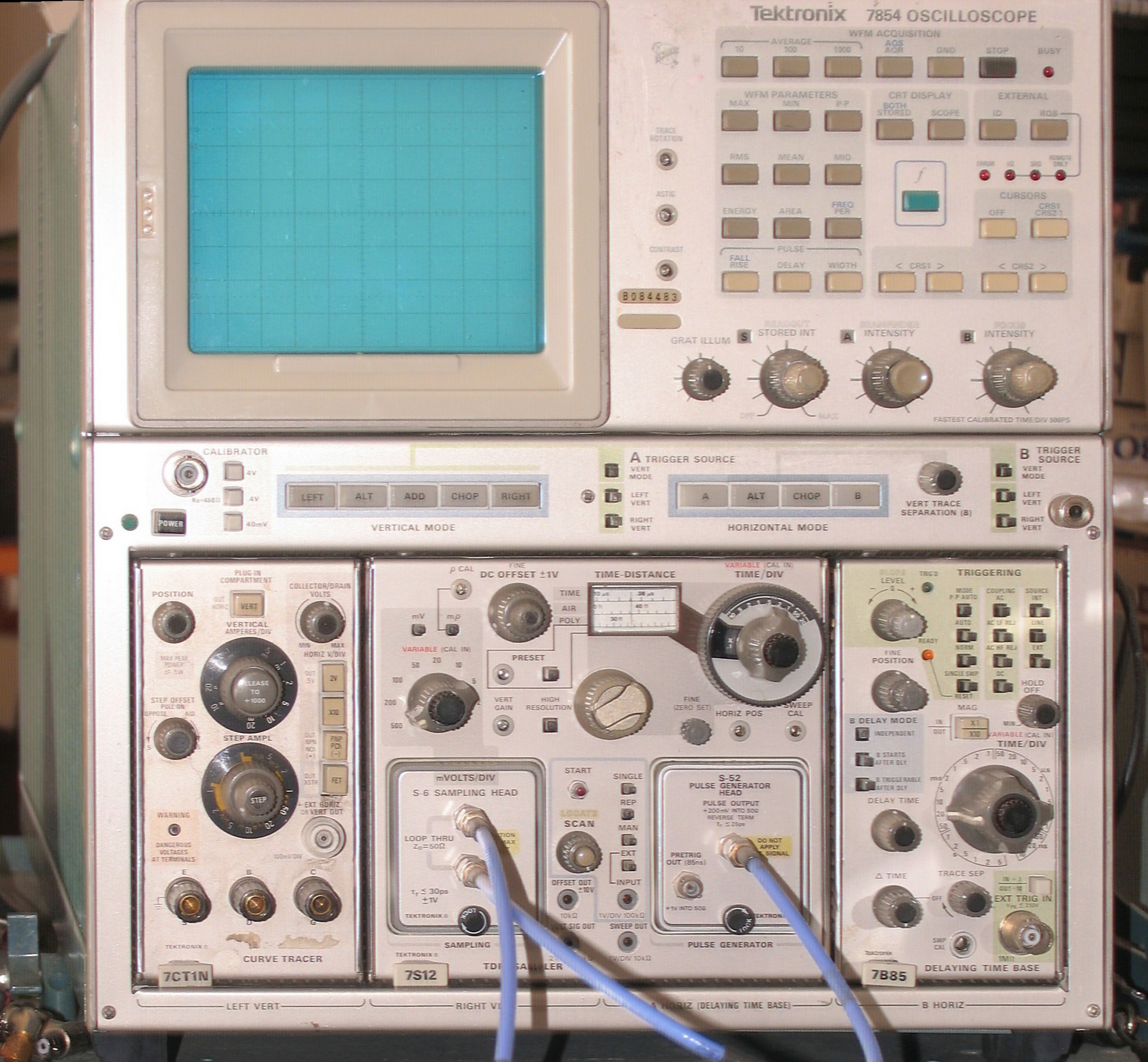

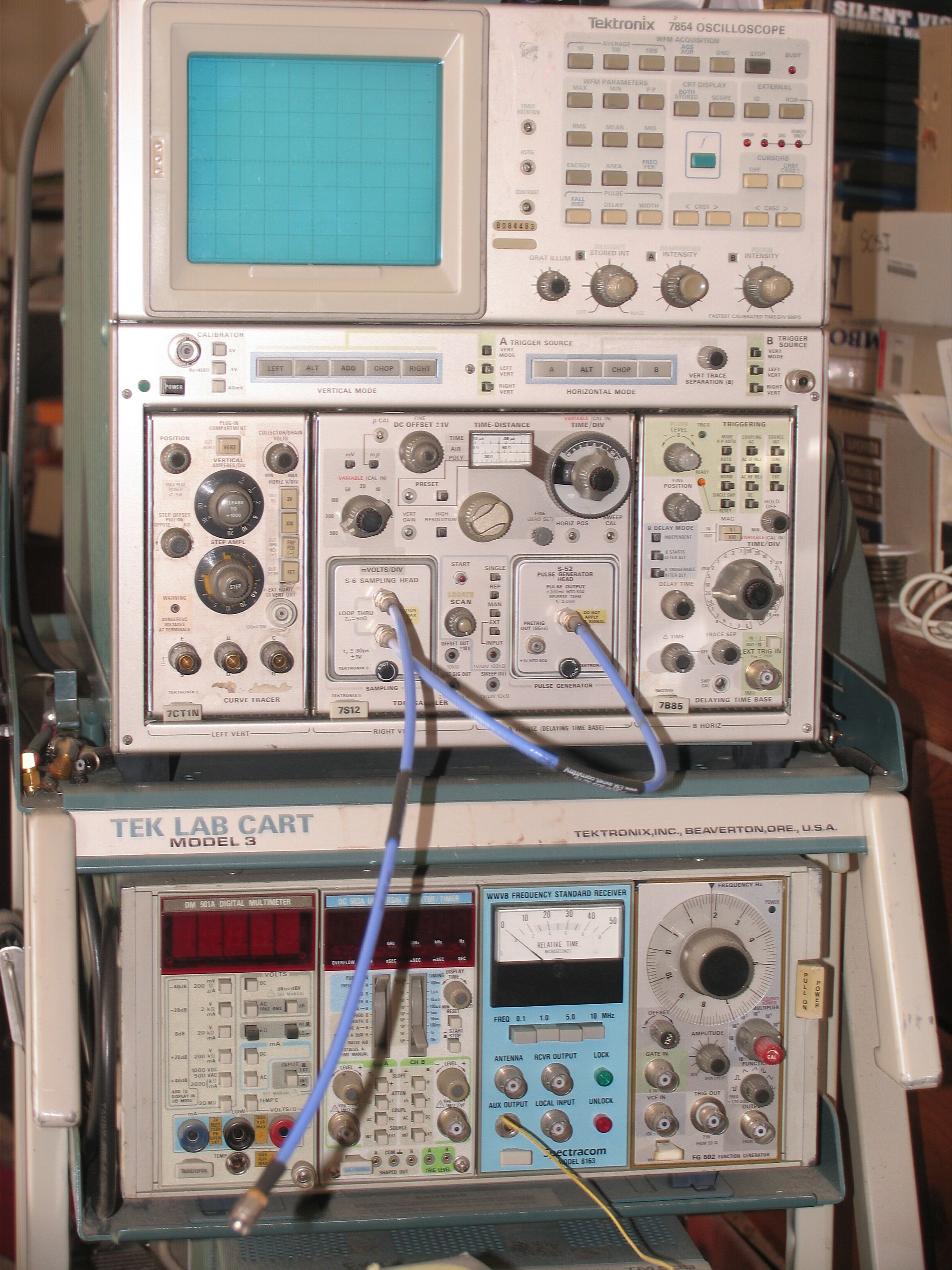

Tektronix 7854

The 7854's interface was schizophrenic by design. In analog mode, the operator used it like any other 7000-series scope: turn vertical sensitivity knobs, adjust the timebase, position the trace with horizontal and vertical offset controls. The CRT displayed conventional real-time waveforms. But entering digital mode transformed the instrument: the CRT showed stored waveforms, alphanumeric readouts, and programmable text. The detachable keyboard — connected by cable — became the primary input device. Typing "WAVEFORM A WAVEFORM B +" added two captured signals point-by-point. The keyboard used postfix notation because Tektronix engineers found it mapped naturally onto signal processing workflow: acquire waveform, acquire another waveform, apply transformation. The Keyboard as Instrument Redefinition. The Waveform Calculator Keyboard was not an afterthought — a dedicated 1981 Application Note (AX-4864) was devoted entirely to the keyboard guide. It contained keys for waveform storage/recall, arithmetic operators, signal processing functions (average, integrate, differentiate, FFT), cursor measurement control, and macro programming. Option 2D expanded memory to 40 waveforms and 2,000 keystrokes of user programming. The keyboard was explicitly designed to be detachable so the instrument could revert to being a conventional scope when mathematical work was unnecessary. A companion WP1310 Waveform Processing System combined the 7854 with a Tektronix 4052 desktop computer for even more sophisticated analysis — but the keyboard made the scope self-contained. HCI Significance. The 7854 matters for HCI history because it forced two entirely different interaction paradigms to coexist in one physical instrument. The analog interaction was continuous, spatial, and embodied — hands on knobs, eyes on a glowing trace. The digital interaction was discrete, symbolic, and abstract — fingers on keys, mind on mathematical transforms. The operator had to negotiate the boundary between these modes, and the 7854's design made that boundary explicit rather than hiding it behind software abstraction. In an era when most instruments were either analog OR digital, the 7854 insisted on being both.
