Tongue Touch Keypad

The TTK's lineage traces back to work at Thomas Jefferson University in the early 1980s. Philip Katz, Henry S. Brenman, Louis D. Lowry, and Harold Schwartz developed a series of intraoral devices including an artificial larynx and a tongue-activated environmental control switch (US Patent 4,550,427, 1985; US Patent 4,605,927, 1986; US Patent 4,783,656, 1988). Their key insight: since lingual function is usually preserved in quadriplegia (the tongue is connected to the brain via cranial nerves, not the spinal cord), an intraoral switch on a dental appliance could bypass physical disability entirely. The Thomas Jefferson device used a single pair of Ag-AgCl contacts bridged by the tongue to activate an intraoral FM transmitter sending control signals to an external receiver. But a single switch is inherently limiting — it can only do one thing. Zofcom's breakthrough was to scale this to a full nine-key membrane keypad integrated into a palatal splint, transforming the tongue from a binary switch into a multi-channel input organ.

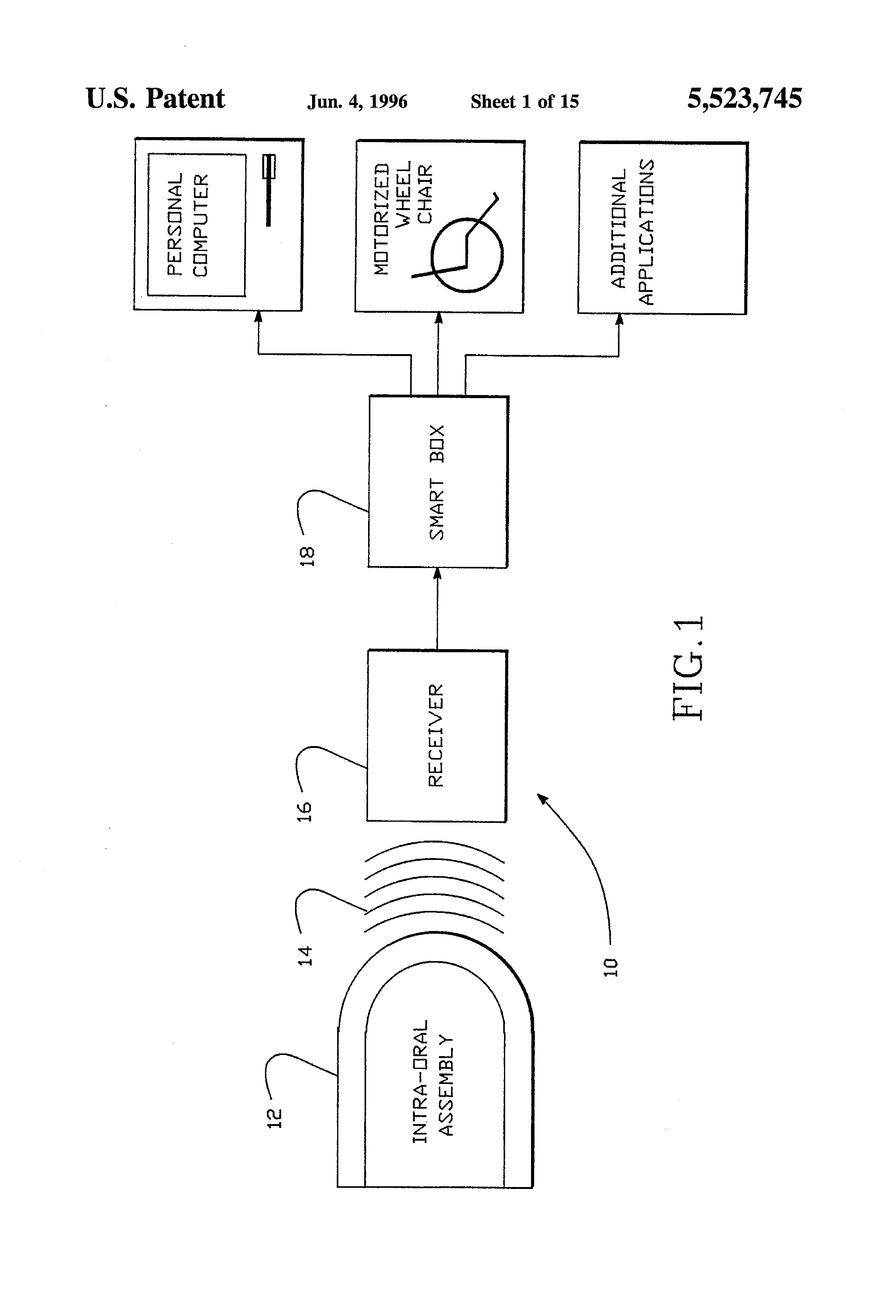

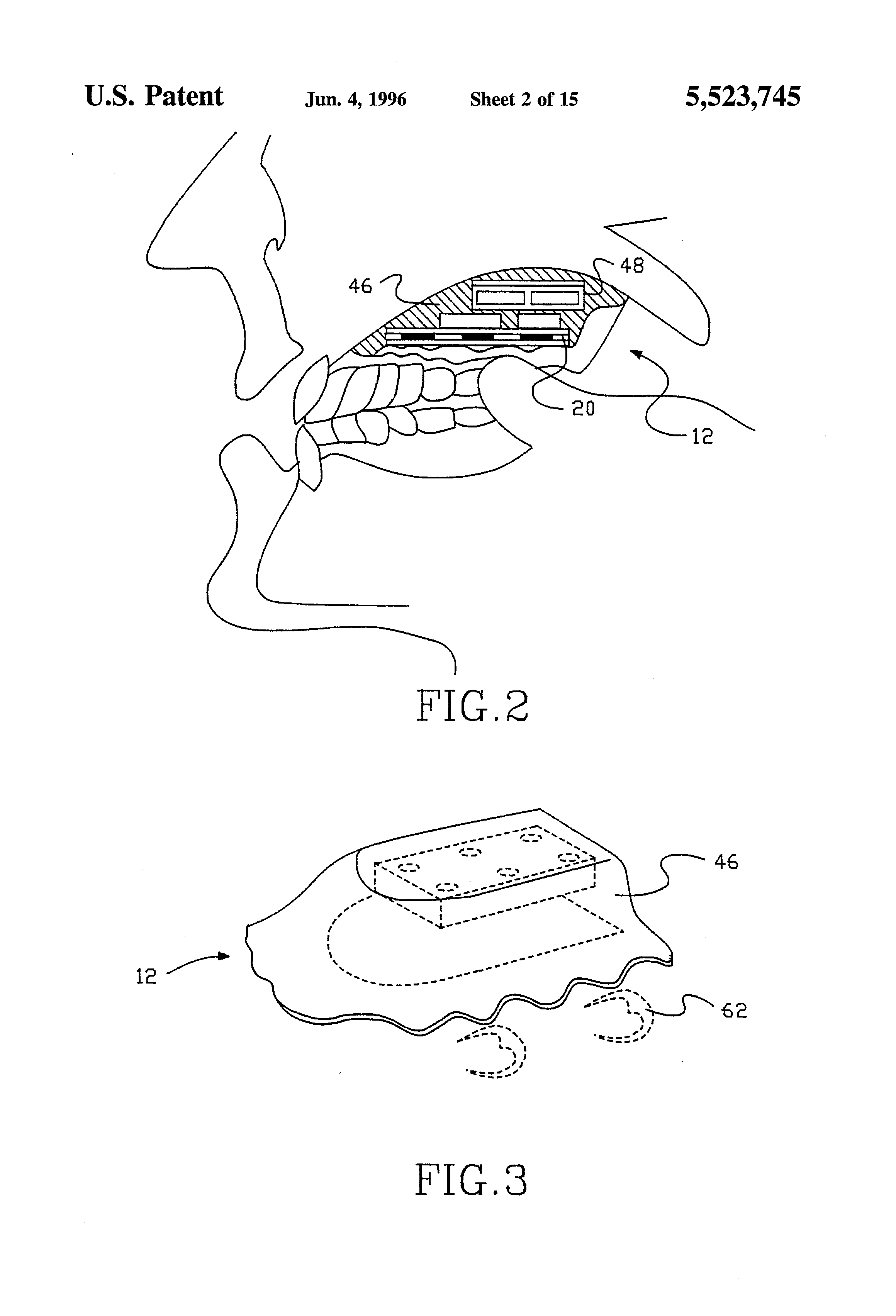

The TTK was fabricated as a custom-fitted dental retainer, typically molded from acrylic polymer, shaped to fit comfortably against the roof of the wearer's mouth. Embedded within the palatal surface was a nine-key membrane keypad — essentially a miniature version of the membrane switches found in early electronic calculators and computer keyboards, but sized and contoured for tongue operation. The keypad was connected to a digital encoder chip that assigned a unique binary code to each key press. A low-power radio transmitter — operating via magnetic flux field coupling at approximately 2 MHz using an air-core inductor coil wound around the periphery of the retainer — broadcast the encoded keystrokes wirelessly to an external receiver. The use of magnetic near-field transmission (rather than conventional RF) was a deliberate design choice to minimize power consumption while maintaining reliable signal through the oral tissue. The entire electronic assembly was potted in medical-grade silicone adhesive to protect it from saliva and the hostile intraoral environment. Battery power came from small lithium or silver oxide cells embedded in the retainer. An important power-saving innovation was a delay circuit that required continuous tongue contact for a threshold duration before activation, preventing inadvertent key presses and extending battery life.

Operating the TTK required learning a new bodily vocabulary. The nine keys were arranged on the palatal retainer in a grid pattern, and the user learned to touch specific positions on the roof of their mouth with the tip of their tongue. Because the tongue rivals the fingers in tactile sensitivity, spatial awareness, and speed, users could develop remarkable proficiency. The Smartlink Controller translated key presses into different modes: in text-entry mode, each key corresponded to a letter, word, or phrase; in mouse mode, directional keys moved the cursor; in environmental control mode, keys mapped to appliances and devices. The SBIR abstract from 1990 explicitly claimed that the text entry rate of the TTK was 'superior to other computer access input devices which are currently available to the disabled.' Crucially — and this was a major psychological factor — the TTK was 'essentially invisible when worn.' Unlike head pointers, mouth sticks, or external switch arrays that visibly marked the user as disabled, the TTK was hidden inside the mouth. For disabled children and teenagers especially, this invisibility was transformative: it reduced self-consciousness and improved willingness to engage with technology in social settings.

Stacy Bibb, born with severe athetoid cerebral palsy that left him quadriplegic and nonverbal at 80 pounds with the developmental abilities of a 4-month-old, received his first TTK in 1991 at age 17. Before the TTK, he could only make noises with his tongue. With the TTK, he could type messages, play video games, control his wheelchair, and operate a computer. His mother Portia recalled, 'I was so proud of him!' The device served him for over 25 years through multiple technology upgrades — from infrared to Bluetooth. Approximately 70 other quadriplegic individuals received TTK systems. The human cost of specialized assistive hardware's fragility became apparent when New Abilities Systems went bankrupt: users like Stacy lost their voice entirely, reduced to binary communication (stick out tongue for 'yes,' close mouth for 'no') for three years until a volunteer game designer named Jason Eldred built a replacement using a 99-cent Halloween mask and a metal contact, later refined by UCSD engineering students.

The TTK established the fundamental paradigm — intraoral, tongue-operated, wireless, multi-channel — that every subsequent tongue-computer interface has followed. The Georgia Tech Tongue Drive System (2008–present, Maysam Ghovanloo) replaced the physical keypad with a magnetic tracer on the tongue and Hall-effect sensors on a headset, trading mechanical contacts for magnetic tracking — but preserved the core insight that the tongue is a high-bandwidth input channel. The Augmental MouthPad (2024, MIT spinoff) returns to the palatal retainer form factor but adds a touch-sensitive trackpad and IMU for continuous cursor control. MIT's MouthIO platform (2024) generalizes the concept into a fabrication toolkit for custom intraoral interfaces. In a 2008 NBC News article, Ghovanloo's team explicitly acknowledged the TTK as predecessor: 'A Palo Alto, Calif.-based company, newAbilities Systems Inc., has already designed a nine-button keypad placed on the roof of the mouth to control electronics.' The TTK's story also serves as a lasting warning about the sustainability challenges of niche assistive hardware — when the company fails, the users are the ones who lose their voice.
