Virtual Fixtures

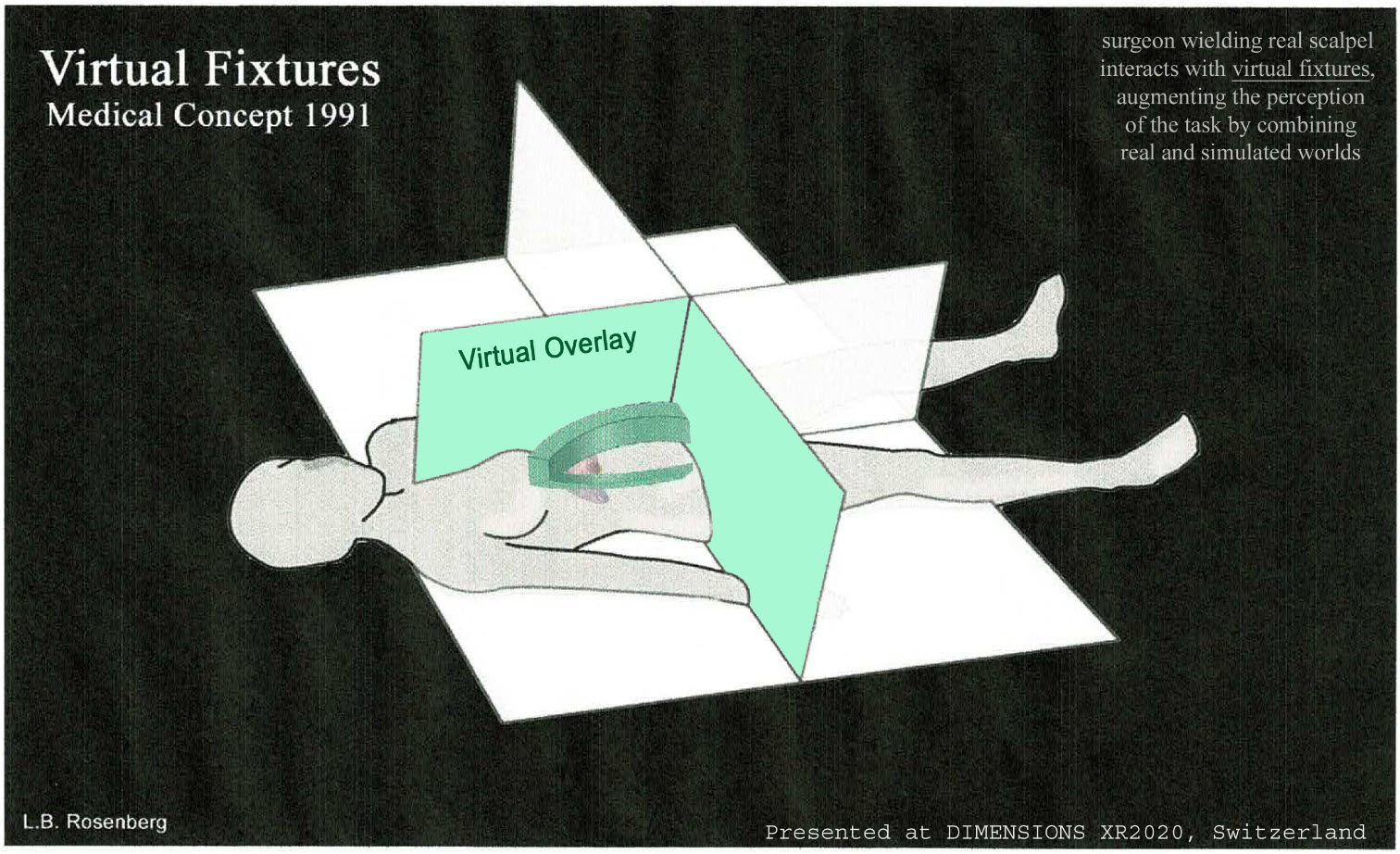

Louis Rosenberg was a doctoral student at Stanford's Center for Design Research in 1991 when he pitched the Virtual Fixtures concept to the USAF Armstrong Labs. The military motivation was teleoperation — controlling robots at a distance for hazardous tasks. But Rosenberg's insight was that virtual guides overlaid on the real workspace could make humans better at precision work than either humans alone or robots alone. He worked simultaneously across three institutions: Armstrong Labs (where the full system was assembled), NASA Ames (depth perception and vision research), and Stanford (VR gloves, immersive vision, 3D audio).

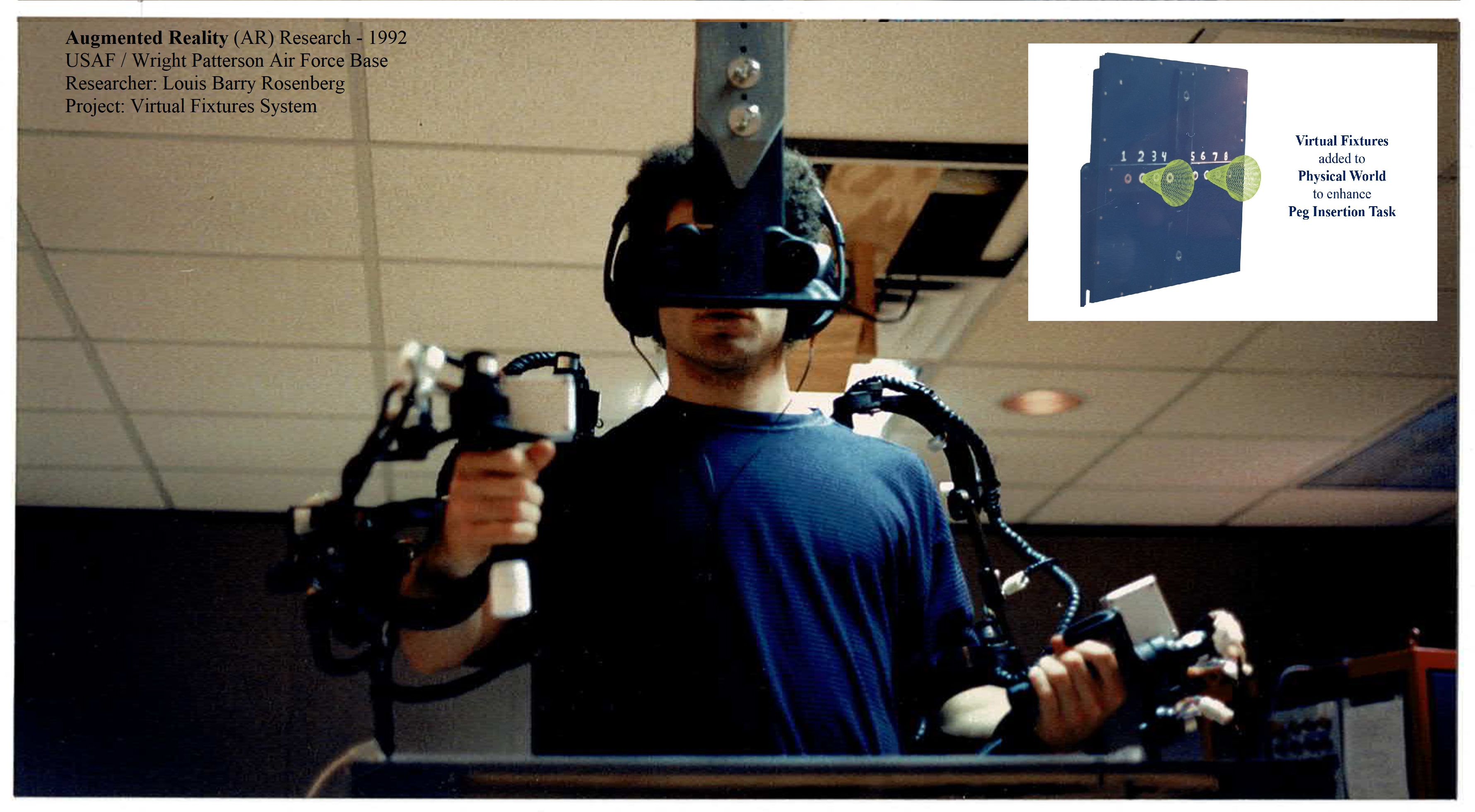

The upper-body exoskeleton was a mechanical framework covered in sensors, motors, gears, and bearings. It provided full 6-DOF tracking of the user's arms and hands, plus kinesthetic force feedback: motors physically pushed back when the user's hand contacted a virtual surface. Virtual fixtures rendered included rigid surfaces (preventing overshoot), guiding cones (funneling pegs into target holes), 'magnetically attractive' surfaces (peg snaps to alignment), textured surfaces with corresponding sounds, and viscous resistance — simulating pushing through 'virtual honey.' This was computational haptics combined with augmented vision years before either term was in common use.

Because 3D computer graphics in 1992 were far too primitive to produce photorealistic AR overlays, Rosenberg devised a workaround. The system used two physical robots controlled by the exoskeleton, with video cameras feeding a pair of binocular magnifiers. The optics were configured so the remote robot arms appeared registered at the exact location of the user's real arms. Virtual overlays were then merged into this pass-through video feed, creating the convincing illusion of virtual objects occupying real space. The cameras themselves were salvaged from a failed parachute test rig — six destroyed in a crash, and Rosenberg pieced together two working units from the wreckage.

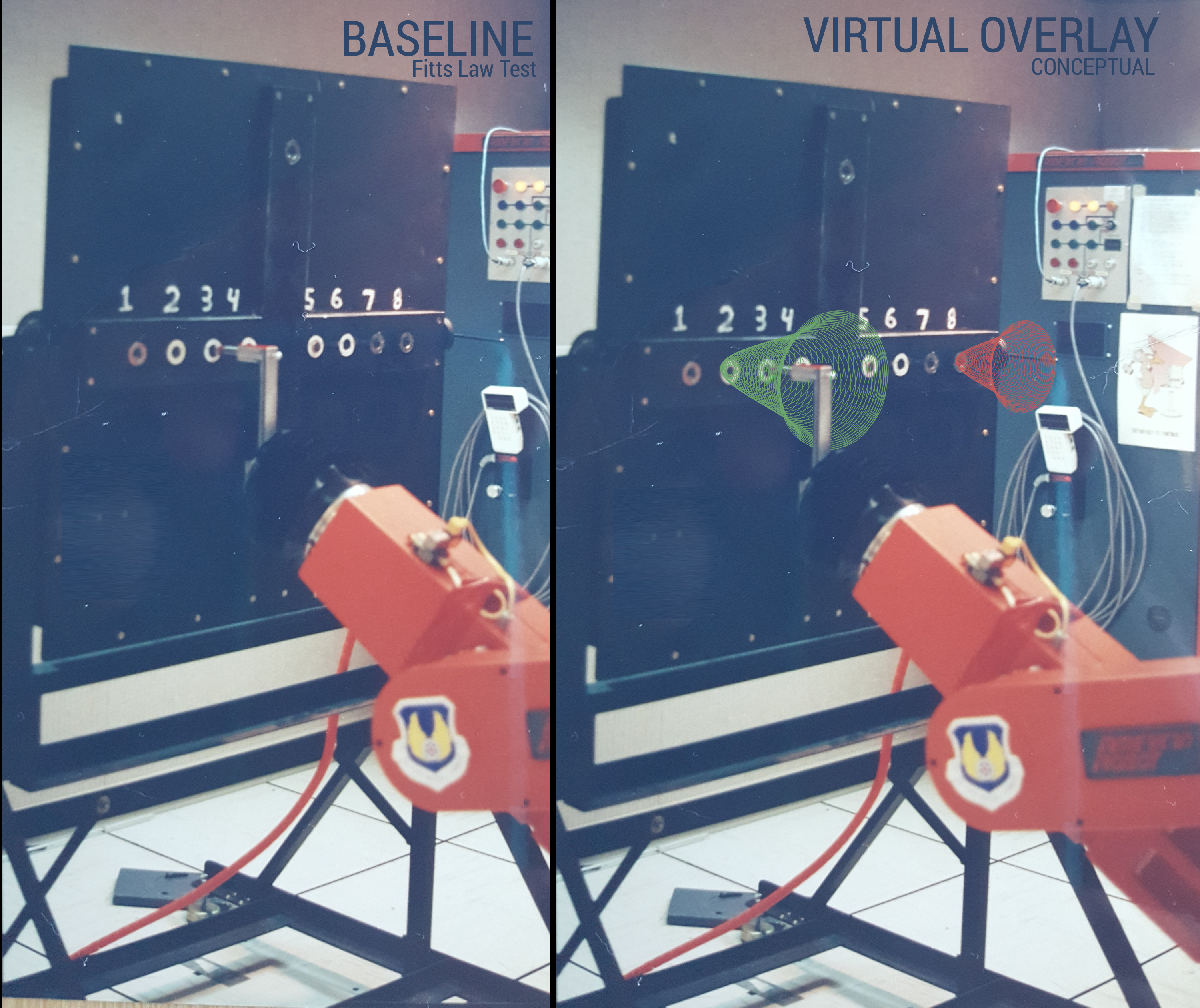

The Fitts's Law peg-insertion tests produced the first empirical proof that AR could enhance real-world task performance — over 100% improvement in speed and dexterity. Rosenberg's 1992 technical report (AL-TR-0089) and 1993 IEEE VR paper established the conceptual framework for virtual guides and constraints still used today in robot-assisted surgery systems (da Vinci), satellite repair telerobotics, and hazardous-environment teleoperation. In 1993, Rosenberg founded Immersion Corporation to commercialize haptic feedback; Immersion's technology is now in most smartphones and gaming controllers. He holds over 300 patents and the Virtual Fixtures work is widely recognized as the origin point for both the modern AR industry and the consumer haptics industry.
